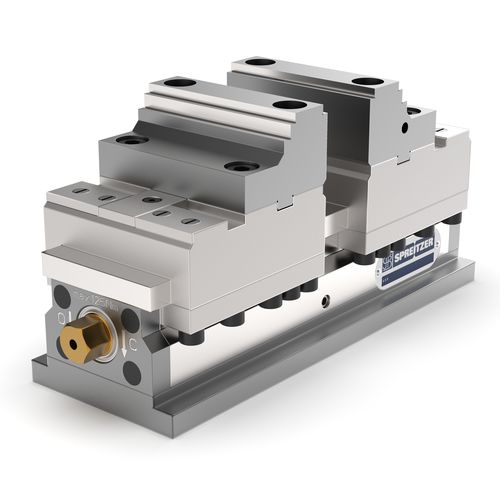

Machine tool vise MZC series
steelself-centeringcompact

machine tool vise
machine tool vise
machine tool vise
machine tool vise
Add to favorites
Compare this product


Characteristics

Applications
for machine tools
Other characteristics
steel, self-centering, compact, center-clamping
Max. clamping force

40 kN, 50 kN, 70 kN

Stroke

30 mm, 40 mm, 50 mm (1 in)

Description

The self-centering clamping vise series MZC is characterized by a completely encapsulated, massive and torsion-free construction. The cleaning effort resp. malfunction because of dirt and stuck chips will be minimized. The large clamping width and the high clamping force enable the universal and flexible use on multi-axis machining centres. Due to the optimized and compact design as well as the wide range of clamping jaw types an optimal accessibility to the workpiece for different customer needs respectively an optimal accessibility on different machine concepts can be reached. The fixturing holes in the base of the centre-clamping vise make mounting a vise on any pallet and automation system easy. On customer request a fully integrated version into exchange paletts such as System 3R, EROWA, HIRSCHMANN or ZeroClamp pallets is available. The centre-clamping vise series MZC can be used when maximum centre and repetition precision are not necessary as well as for already pre-machined workpieces. Explanation type: model length (mm)-width (mm). Type: MZC 220-80 E, MZC 220-80 S, MZC 280-100 E, MZC 280-100 S, MZC 360-125 E, MZC 360-125 S. Please specify the type when raising a request.
