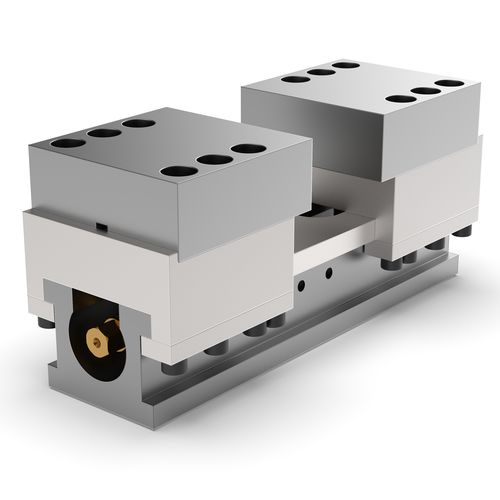

Center-clamping vise MZS

for machine toolsuniversal5-axis machine tool

The large product variety and the high centering and repetition accuracy make this centre-clamping vise series a universal clamping solution especially for already premachined workpieces or precision parts. The high rigidity of the vise body as well as the optimal guide ways of the guide jaws allow high clamping accuracy. Hardened and grinded spindle Material: modified steel, surface hardened Functional surface precision grinded Semi encapsulated, two-sided chip flow Centering accuracy ± 0,005 mm Repetition accuracy 0,003 mm Pairing accuracy 0,01 mm Type A: with soft clamping jaws. Type B: with hard clamping jaws. Explanation type: model length (mm)-width (mm) Type: MZS 70-36 A, MZS 100-50 A, MZS 120-60 A, MZS 180-80 A, MZS 220-80 A, MZS 220-100 A, MZS 260-125 A, MZS 350-160 A, MZS 450-160 A. Please specify the type when raising a request.
