Center-clamping vise MZE

for machine tools5-axis machine toolhorizontal

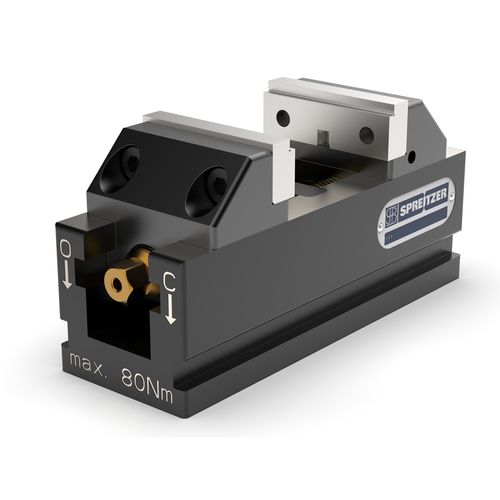

The mechanical self-centering vises of the MZE series are powerful and cost-effective clamping systems designed for use on multi-axis machining centers and automated manufacturing systems. The compact design ensures excellent accessibility to the workpiece, particularly in 5-axis and multi-side machining applications.
Interchangeable jaws provide high flexibility for different clamping tasks and workpiece geometries. The large clamping range and high process reliability make the MZE series suitable for both raw part and finished part machining.

Features
• Compact design for multi-axis machining
• Large clamping range
• Mechanical self-centering vise for flexible clamping applications
• Interchangeable jaws for various customer requirements
• Suitable for external and internal clamping
• Excellent accessibility in 5-axis and multi-side machining
• Powerful and economical workholding
• Precision-ground functional surfaces
• Hardened spindle
• Precision-fitted base jaws
• Surface-hardened design
• Stainless steel VA version made of magnetizable chrome steel available

Material
Standard version:
• Heat-treated tool steel
VA version:
• Magnetizable stainless chrome steel

Design
Standard version:
• Surface-hardened
VA version:
• Through-hardened

Accuracy
• Centering accuracy: ±0.015 mm
• Repeatability: 0.01 mm
• Matching accuracy: 0.02 mm

Applications
• Multi-axis machining centers
• Automation systems
• Single-part production
• Small batch production
• External and internal clamping
• 5-axis and multi-side machining

Scope of delivery
• 1 MZE self-centering vise
• 1 pair of hardened stepped jaws 89°
• Operating instructions
