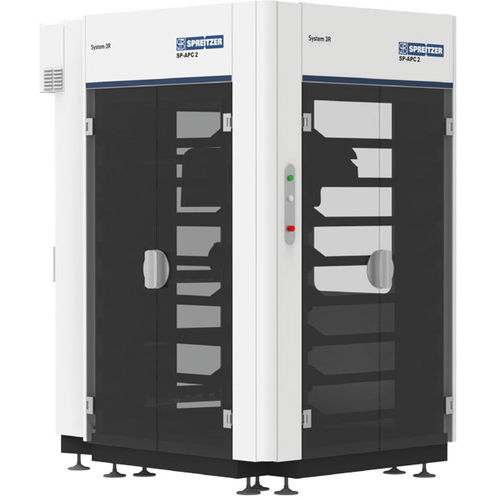

Automated pallet changer SP-APC 2

The automatic pallet changer SP-APC 2 has been developed for the flexible and economical automation of modern manufacturing processes. The system combines maximum magazine capacity with minimal floor space and enables efficient automation for a wide range of machining centers.

Thanks to its modular design, the magazine capacity can be individually adapted to customer requirements. The system grows flexibly with production demands — from a single magazine up to a multi-magazine solution with up to 240 pallets.

The SP-APC 2 is equally suitable for single-part production, small batch manufacturing and serial production. Large magazine doors provide fast, ergonomic and user-friendly access to the magazine and significantly simplify pallet loading and unloading.

Due to its compact design, easy installation and compatibility with all common CNC controls, the pallet changer can be seamlessly integrated into existing production environments. The system offers high process reliability, reduced setup times and maximum machine availability.

Features
• Automatic pallet changer for modern manufacturing automation
• Maximum magazine capacity with minimal footprint
• Modular and flexibly expandable magazine system
• Expandable from 10 to 240 pallets
• Configuration with 1 to 3 magazines
• Efficient for single-part and serial production
• Large magazine doors for optimal operator access
• Ergonomic and fast pallet loading and unloading
• User-friendly operation
• Easy installation and short commissioning times
• High process reliability and machine availability
• Compatible with all common CNC controls
• Flexible adaptation to different machine concepts

Applications
• Milling machines
• Grinding machines
• EDM machines
• Measuring machines
• Automated manufacturing cells
• Single-part production
• Serial production

Technical specifications
• Compact dimensions: 1270 × 1735 × 2250 mm (depending on magazine type)
• Magazine capacity: 10 – 240 pallets
• 1 – 3 magazines
• C-axis rotation range: 330°
• AC servo motors in all axes
• Serial interface RS232 / RS422
• Pallet gripper
• Magazine or pallet storage according to customer requirements

Scope of delivery
• 1 SP-APC 2 pallet changer
• AC servo motors in all axes
• Serial interface RS232 / RS422
• Pallet gripper
• Magazine or pallet storage according to customer requirements

Accessories
• Sliding plate for front loading
• Setup station
• Drying station for pallets
• ID chip system with or without automatic scanning
• Process control system with alarm server
• Air connection for clamping chucks via pallet gripper
• Internal LED magazine lighting

Advantages at a glance
• Maximum magazine capacity with minimum floor space
• Flexible expansion according to increasing production requirements
• Significant reduction of setup and non-productive times
• High cost efficiency and fast return on investment
• Optimal accessibility and ergonomic operation
• Efficient automation for a wide range of manufacturing processes
• Future-proof and scalable automation solution
