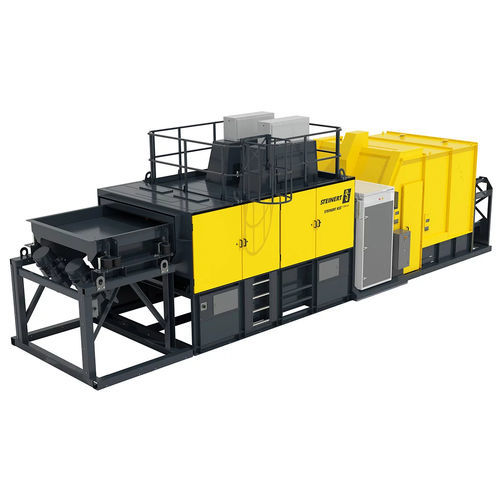

X-ray sorting system KSS®

for recyclingautomaticfor waste

We have harmonised four sensor systems in this combination sensor sorting system. Two optical sensors provide colour and three-dimensional shape information, the inductive sensor detects metals and differences in density are detected using x-ray transmission. The logical combination of multi-sensory data collected for each individual object enables a wide variety of tasks to be covered by just one sorting machine. This combination is therefore frequently used as a stand-alone solution integrated into a processing concept – significantly expanding the sorting depth even for smaller mass flows. Customised equipment and program creation are mandatory. The combination of x-ray transmission (XRT) and 3D enables an additional evaluation of object characteristics and makes our system less sensitive to great differences in the sortable material. The STEINERT KSS | XT CLI EVO 6.0 is a combination of: C = colour detection L = laser (3D detection) I = inductive sensor XT = x-ray transmission The new EVO 6.0 generation significantly improves how the sorting system is handled. Better access to the system components speeds up maintenance work. For example, the pneumatic unit has been re-arranged and, rather than being located under the sorting system, it is now at the front end, making it easily accessible. Users also stand to gain from a permanently integrated railing with ladders, allowing the 3D and colour sensors to be accessed quickly and safely without requiring climbing gear. External footrests are no longer needed for work in the discharge area. An integrated rolling platform permits quick and safe access to the nozzle bar and conveyor belt.
