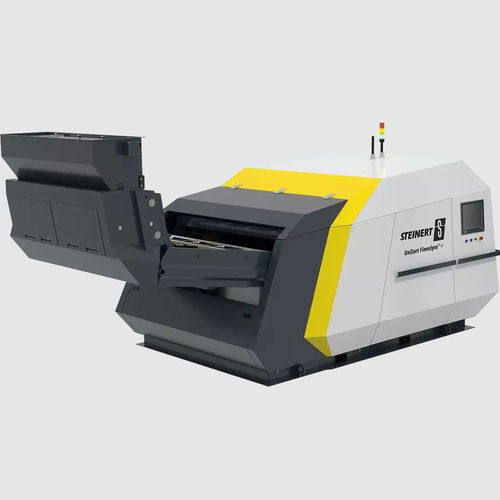

Plastic recycling sorting system Finealyse®+

industrialcoloroptical

UniSort Finealyse+ is a higher-performing version of its established UniSort Finealyse sensor sorting system. This new machine was developed especially for the challenges experienced when processing plastic flakes and granulates as well as when sorting metal granulates with grain sizes ranging from 2 to 30 mm. The diverse potential uses for this product range from sorting plastic flakes to metal applications. UniSort Finealyse+ reliably removes incorrect colours and unwanted plastics from plastic flakes. It is also well suited to colour sorting of non-ferrous metals in addition to removing unwanted plastics from e-scrap. This all results in high flexibility and product purity with minimal material losses. The sorting unit is available with a high resolution NIR (near-infrared) camera, with a highly selective colour detection unit or with NIR and colour sensor combination with sensor fusion technology. The sensor combination including a colour camera, allows additional characteristic properties that can be identified and mapped at the same point, ensuring even more stable detection. The material is passed through a feed and dispensing device and lands on the integrated conveyor belt. The feed material is accelerated by a high-speed belt and pressed onto the belt using the active object control (AOC) system developed by us at STEINERT – and is held in a stable position even after leaving the belt. This relatively elaborate but effective stabilisation helps to steady even the smallest objects on the belt in a controlled manner and keep them in the calculated position on the parabolic trajectory after leaving the belt.
