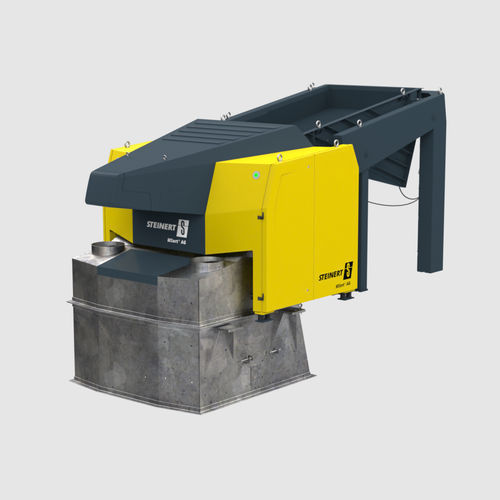

Sorting system for the mining industry MSort® AG

coloropticalquartz

Our MSort AG is suitable for sorting raw materials as well as industrial minerals in mining at temperatures of between -5 and +35°C. It allows damp bulk materials, such as concrete, brick, asphalt and minerals, such as quartz, marble, barite, limestone, calcite and dolomite, to be efficiently colour sorted within a fraction range of 30 to 250 mm. The machine also produces ultra-pure colour fractions from ores, including copper oxide, manganese ore and veins of quartz containing precious metals. Numerous sorting options can be implemented thanks to high-resolution camera technology (in the visible wavelength range) and flexible software. A feeder and vibrating conveyor evenly feed the material to the chute, from where it is detected in free fall. A powerful sensor deploys parallel processor technology to analyse colour, shape, brightness and transparency using the reflected light method. Precise high-speed compressed air pulses undertake the sorting. It is particularly worth noting that detecting material in free fall allows wet and heavily contaminated material to be processed without the need for technical drying. The benefits to you at a glance: Efficient evacuation with minimal loss of product Large rejection box, extremely solid wear protection Evaluation electronics with protection against overload Chute sorting system Fraction size: 30–250 mm Requires little maintenance and is easy to service Flexibility ensured through optional individual control of valves and scope for adjusting height of detection to particle size Also available: Wear protection, special voltage, active cooling (up to +45°C)
