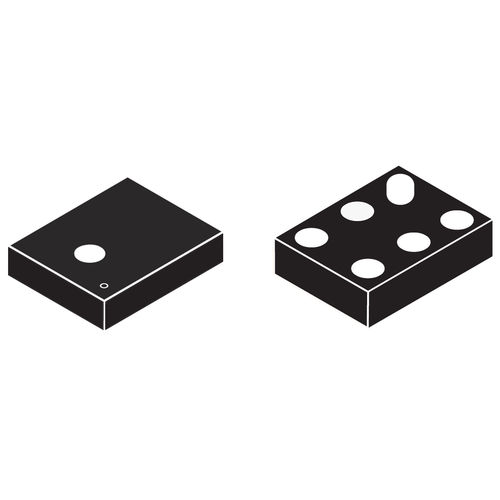

Predictive maintenance microphone IMP23ABSU

for printed circuit boardsMEMSomnidirectional

The IMP23ABSU is a compact, low-power microphone built with a capacitive sensing element and an IC interface. The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process to produce audio sensors. The IMP23ABSU has an acoustic overload point of 130 dBSPL with a typical 64 dB signal-to-noise ratio. The sensitivity of the IMP23ABSU is -38 dBV ±1 dB @ 94 dBSPL, 1 kHz. The IMP23ABSU is available in a package compliant with reflow soldering and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C. All features Single supply voltage operation 1.52 V - 3.6 V Omnidirectional sensitivity High signal-to-noise ratio High acoustic overload point: 130 dBSPL typ. Package compliant with reflow soldering Enhanced RF immunity Ultra-flat frequency response Ultrasound bandwidth (up to 80 kHz) Low latency Ultra-low-power: 150 µA max. ECOPACK, RoHS, and “Green” compliant High performance MEMS microphone with ultrasound capability for predictive maintenance applications Very low current consumption (120uA), very flat frequency response (roll-off at 15Hz), ultrasound frequency range up to 80kHz, included in the 10 year longevity program.
