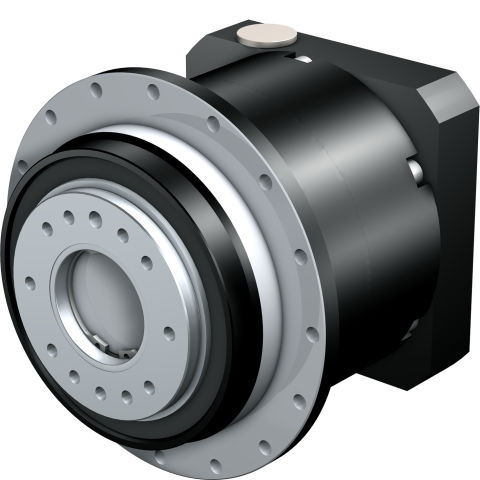

Helical servo-gearbox PH series
200 - 500 Nm500 - 1000 Nm1 - 2 kNm

helical servo-gearbox
helical servo-gearbox
helical servo-gearbox
helical servo-gearbox
helical servo-gearbox
helical servo-gearbox
Add to favorites
Compare this product


Characteristics

Type
helical
Torque
200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 100 - 200 Nm, 50 - 100 Nm, 2 - 5 kNm
Performance
precision
Applications
shaft
Other characteristics
flange
Rotational speed

Max.: 8,000 rpm (50,265.48 rad.min-1)

Min.: 3,000 rpm (18,849.56 rad.min-1)

Description

Precision for typical servo applications. Helical gearing. Highest torsional and tilting stiffness. Backlash up to < 3 arcmin. Flange output shaft. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor. Shaft Designs Flange shaft Bearing Design Pretensioned angular contact bearings at the output in an O-arrangement, ideally suited for helical geared rack and pinion drive. Mounting Positions - Any mounting position. Lubricants and Maintenance - Synthetic lubricant CLP HC ISO VG 150 - Lubricated for life - Maintenance-free Paint Finish Black RAL 9005 Motor Adapter ME - Universal motor mounting system for almost all synchronous servo motors. - Option large (MEL) for large motors. - Fast and secure motor mounting. - Integrated EasyAdapt® clamp coupling for motor shafts without key. - Robust, balanced coupling. - Thermal length compensation. - Low mass inertia.
