helical servo-gearbox / coaxial / 200 - 500 Nm / 500 - 1000 Nm
PA series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

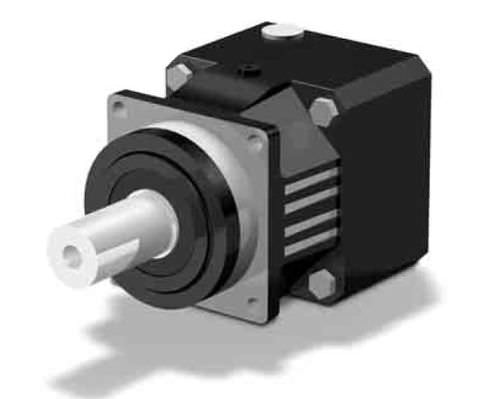

helical servo-gearbox / coaxial / 200 - 500 Nm / 500 - 1000 Nm helical servo-gearbox / coaxial / 200 - 500 Nm / 500 - 1000 Nm - PA series
{{requestButtons}}

Characteristics

  • Type:

    helical

  • Shaft orientation:

    coaxial

  • Torque:

    200 - 500 Nm, 500 - 1000 Nm, 100 - 200 Nm, 50 - 100 Nm

  • Performance:

    precision, low-backlash

  • Other characteristics:

    for shafts

  • Rotational speed:

    Min.: 3,000 rpm (18,849.56 rad.min-1)

    Max.: 8,000 rpm (50,265.48 rad.min-1)

Description

Precision for highest demands. Helical gearing. High torsional stiffness. Backlash up to < 1 arcmin. Robust solid shaft. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor.
Shaft Designs
- Solid shaft with key
- Solid shaft without key
Bearing Design
- Reinforced bearings for higher axial load capacity (option)
Mounting Positions
- Any mounting position.
Lubricants and Maintenance
- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish
Black RAL 9005
Motor Adapter MF
- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MFL) for large motors.
- Fast and secure motor mounting.
- Integrated FlexiAdapt® clamp coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation with flexible bellows coupling.
