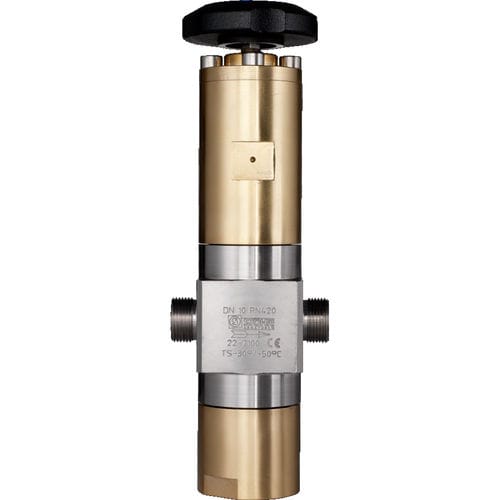

High-pressure valve 7100 BALANSglobemanualelectropneumatic
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- manual, electropneumatic
- Function
- shut-off
- Media
- for gas
- Body
- in-line, seat, straight, in-line, stainless steel
- Applications
- for industrial applications, industrial, for process applications, cryogenic, pipe, for the gas industry, for pipes
- Associated function
- for filling applications
- Other characteristics
- high-pressure, normally closed, normally open, with bellows seal, for hydrogen, with butt weld ends, for sour gas, high-speed, pneumatically-operated, for nitrogen, with threaded connection, for explosive atmospheres, electromagnetic
- DN
Max.: 40 mm
(1.575 in)Min.: 10 mm
(0.394 in)- Pressure
360 bar
(5,221.4 psi)- Temperature
Max.: 50 °C
(122 °F)Min.: -271 °C
(-456 °F)
Description
Series BALANS 7100
- High pressure valve for up to 360 bar operating pressure
- Ambient medium temperature ranging from -30° C to + 50° C (243 K to 323 K)
- Cryogenic medium temperature ranging from -271° C to -30° C (2 K to 243 K)
- Manual or pneumatic actuator
- Straight body type
- Low actuating forces up to nominal pressure due to balanced valve lift
- High tightness at seat, even at high pressure levels
- Installation in any mounting position possible
- Nominal pressure: PN360
- Nominal sizes: DN10 to DN40
Catalogs
Series 7100 Balans
14 Pages
