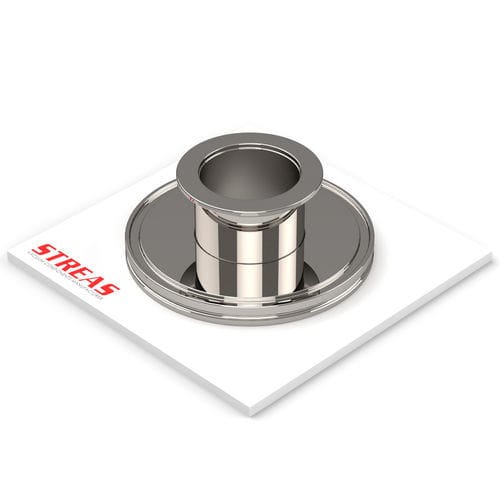

Interface laboratory adapter A63ISOK25KF-4

reduction

Linear adapter for connecting components from ISO-K and KF lines. Manufactured in AISI 304 with external mechanical polish and raw internal finish.

Variants / Items:

• A63ISOK25KF-4 — DN 63/25 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: Medium availability — Dimensions: A = 95 mm (3.74 in), B = 40 mm (1.575 in), C = 50 mm (1.969 in)
• A63ISOK40KF-4 — DN 63/40 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: High availability — Dimensions: A = 95 mm (3.74 in), B = 55 mm (2.165 in), C = 50 mm (1.969 in)
• A63ISOK50KF-4 — DN 63/50 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: High availability — Dimensions: A = 95 mm (3.74 in), B = 75 mm (2.953 in), C = 50 mm (1.969 in)
• A80ISOK40KF-4 — DN 80/40 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: Medium availability — Dimensions: A = 110 mm (4.331 in), B = 55 mm (2.165 in), C = 50 mm (1.969 in)
• A80ISOK50KF-4 — DN 80/50 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: Medium availability — Dimensions: A = 110 mm (4.331 in), B = 75 mm (2.953 in), C = 50 mm (1.969 in)
• A100ISOK25KF-4 — DN 100/25 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: Medium availability — Dimensions: A = 130 mm (5.118 in), B = 40 mm (1.575 in), C = 50 mm (1.969 in)
• A100ISOK40KF-4 — DN 100/40 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: High availability — Dimensions: A = 130 mm (5.118 in), B = 55 mm (2.165 in), C = 50 mm (1.969 in)
• A100ISOK50KF-4 — DN 100/50 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: High availability — Dimensions: A = 130 mm (5.118 in), B = 75 mm (2.953 in), C = 50 mm (1.969 in)
• A160ISOK40KF-4 — DN 160/40 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: High availability — Dimensions: A = 180 mm (7.087 in), B = 55 mm (2.165 in), C = 50 mm (1.969 in)
• A160ISOK50KF-4 — DN 160/50 — Material: AISI 304 — Finish: external mechanical polish, internal raw — Availability: High availability — Dimensions: A = 180 mm (7.087 in), B = 75 mm (2.953 in), C = 50 mm (1.969 in)

Documentation available:

• Commercial product sheet (PDF)
• Technical data sheet (PDF)

Features / Technical specifications:

• Line: KF, ISO-K
• Line type: ISO
• Product type: Adapters
• Material: AISI 304
• Finish: external mechanical polish, internal raw
• Function: linear adapter for connecting ISO-K and KF components
