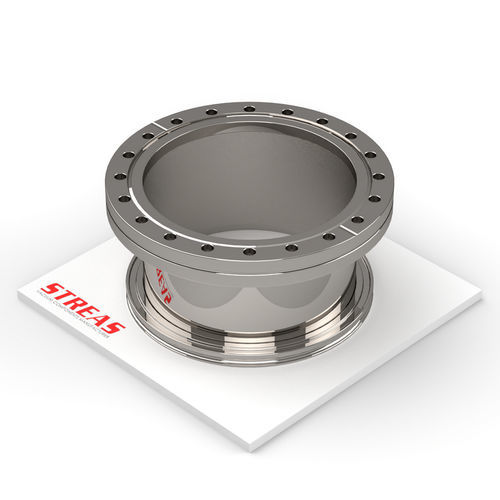

Flange adapter ISOK-4 series

for vacuummachined

Adapter in AISI 304 that enables connection of an ISO-K high-vacuum line to a CF ultrahigh-vacuum connection. Suitable for interfacing flanges and fittings of the two standards in vacuum applications.

Available items:

• A63CF63ISOK-4 — DN 63 — A: 114 mm; B: 92,2 mm; C: 95 mm; D: 100 mm
• A100CF100ISOK-4 — DN 100 — A: 152 mm; B: 130,3 mm; C: 130 mm; D: 100 mm
• A150CF160ISOK-4 — DN 160/150 — A: 202 mm; B: 181 mm; C: 180 mm; D: 100 mm
• A200CF160ISOK-4 — DN 200/160 — A: 253 mm; B: 231,8 mm; C: 240 mm; D: 100 mm
• A250CF200ISOK-4 — DN 250/200 — A: 306 mm; B: 284 mm; C: 290 mm; D: 100 mm

Features / technical specifications:

• Line: ISO-K, CF
• Line type: CF
• Product type: Adapters
• Material: AISI 304
• Finish: external mechanically polished; internal machined (unfinished)
• Function: connects ISO-K flanges/fittings to CF flanges/fittings for high-vacuum/ultrahigh-vacuum applications
