Vacuum fitting AP series
304 stainless steelvacuumfor hoses

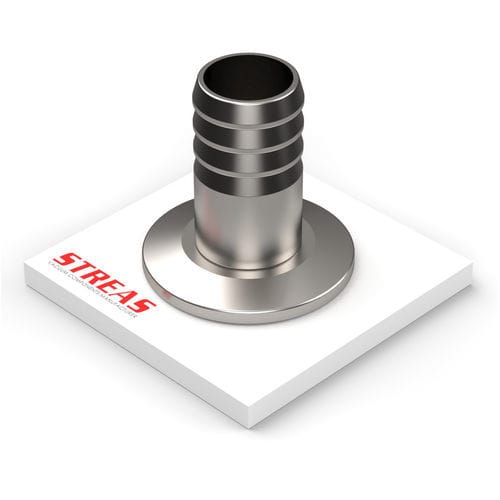

Vacuum fitting - AP series - Streas srl - 304 stainless steel / vacuum / for hoses
Vacuum fitting - AP series - Streas srl - 304 stainless steel / vacuum / for hoses
Vacuum fitting - AP series - Streas srl - 304 stainless steel / vacuum / for hoses - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
for vacuum
Material
304 stainless steel
Other characteristics
vacuum, for hoses
Diameter

Min.: 10 mm
(0.394 in)

Max.: 40 mm
(1.575 in)

Description

Adapter composed of a KF flange and a hose connector, designed to connect a rubber hose to a vacuum line. Product available in AISI 304 with a microblasted finish.

General features:
  • Line: KF
  • Line type: KF
  • Product type: Adapters
  • Material: AISI 304
  • Finish: Microblasted

Available items (dimensional table):
  • AP10KF-12-4 — Material: AISI 304; Finish: Microblasted; DN: 10; Availability: Medium; A: 30 mm (1.181 inch); B (hose Ø): 12 mm (0.472 inch); C: 40 mm (1.575 inch)
  • AP16KF-12-4 — Material: AISI 304; Finish: Microblasted; DN: 16; Availability: High; A: 30 mm (1.181 inch); B (hose Ø): 12 mm (0.472 inch); C: 40 mm (1.575 inch)
  • AP25KF-12-4 — Material: AISI 304; Finish: Microblasted; DN: 25; Availability: High; A: 40 mm (1.575 inch); B (hose Ø): 12 mm (0.472 inch); C: 40 mm (1.575 inch)
  • AP25KF-16-4 — Material: AISI 304; Finish: Microblasted; DN: 25; Availability: High; A: 40 mm (1.575 inch); B (hose Ø): 16 mm (0.63 inch); C: 40 mm (1.575 inch)
  • AP25KF-20-4 — Material: AISI 304; Finish: Microblasted; DN: 25; Availability: High; A: 40 mm (1.575 inch); B (hose Ø): 20 mm (0.787 inch); C: 40 mm (1.575 inch)
  • AP40KF-12-4 — Material: AISI 304; Finish: Microblasted; DN: 40; Availability: High; A: 55 mm (2.165 inch); B (hose Ø): 12 mm (0.472 inch); C: 40 mm (1.575 inch)
  • AP40KF-25-4 — Material: AISI 304; Finish: Microblasted; DN: 40; Availability: High; A: 55 mm (2.165 inch); B (hose Ø): 25 mm (0.984 inch); C: 40 mm (1.575 inch)

Characteristics / technical specifications:
  • Main material: AISI 304
  • Finish: Microblasted
  • Application: connection of a rubber hose to a vacuum line (KF flange + hose connector)
  • Series / line: KF
