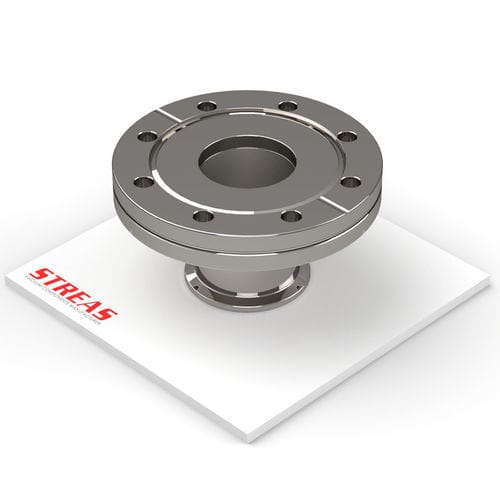

Flange connector union KF-4 series

Linear adapter enabling the connection of components from the CF and KF lines. Product available in AISI 304 with a mechanically polished exterior finish and raw interior.

Available items:

• A16CF10KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 10/16; A: 34 mm (1.339 inch); B: 27 mm (1.063 inch); C: 30 mm (1.181 inch); D: 40 mm (1.575 inch); E: -; F: -
• A16CF16KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 16; A: 34 mm (1.339 inch); B: 27 mm (1.063 inch); C: 30 mm (1.181 inch); D: 40 mm (1.575 inch); E: -; F: -
• A38CF16KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 38/16; A: 70 mm (2.756 inch); B: 58,7 mm (2.311 inch); C: 30 mm (1.181 inch); D: 40 mm (1.575 inch); E: -; F: -
• A38CF25KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 38/25; A: 70 mm (2.756 inch); B: 58,7 mm (2.311 inch); C: 40 mm (1.575 inch); D: 40 mm (1.575 inch); E: -; F: -
• A38CF40KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 38/40; A: 70 mm (2.756 inch); B: 58,7 mm (2.311 inch); C: 55 mm (2.165 inch); D: 60 mm (2.362 inch); E: -; F: -
• A63CF25KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 63/25; A: 114 mm (4.488 inch); B: 92,2 mm (3.63 inch); C: 40 mm (1.575 inch); D: 60 mm (2.362 inch); E: -; F: -
• A63CF40KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 63/40; A: 114 mm (4.488 inch); B: 92,2 mm (3.63 inch); C: 55 mm (2.165 inch); D: 60 mm (2.362 inch); E: -; F: -
• A63CF50KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 63/50; A: 114 mm (4.488 inch); B: 92,2 mm (3.63 inch); C: 75 mm (2.953 inch); D: 60 mm (2.362 inch); E: -; F: -
• A100CF40KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 100/40; A: 202 mm (7.953 inch); B: 130,3 mm (5.13 inch); C: 55 mm (2.165 inch); D: 60 mm (2.362 inch); E: -; F: -
• A100CF50KF-4 — Material: AISI 304; Finish: Polished mech. Ext. and Raw Int.; DN: 100/50; A: 202 mm (7.953 inch); B: 130,3 mm (5.13 inch); C: 75 mm (2.953 inch); D: 60 mm (2.362 inch); E: -; F: -

Features / technical specifications:

• Designation: CF/KF adapter
• Line: KF, CF
• Line type: CF
• Product type: Adapters
• Material: AISI 304
• Finish: Mechanically polished exterior and raw interior
