Automatic packaging machine CB12

blisterfor cosmetic productsfor the cosmetics industry

Description

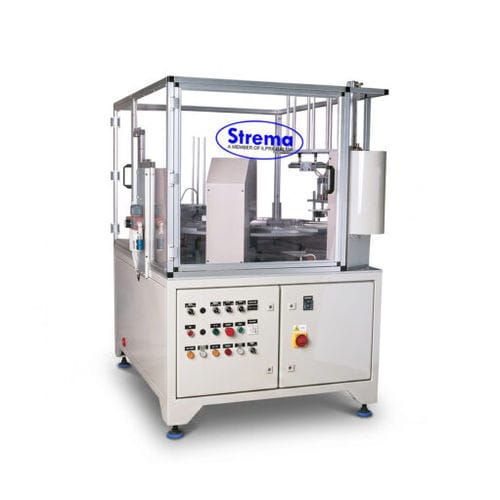

CB12 is an automatic blister packaging machine designed for producing blister packs of cotton swabs with high format flexibility. It ensures reliable sealing of the PVC blister onto the cardboard support and supports insertion of an optional leaflet.

Key attributes

• Speed
• Quality
• Flexibility
• Simplicity

Technical Data
Packaging
PVC blister + sealable cardboard + optional insert

Throughput
22 x 100 – 16 ÷ 17 x 150 – 12 ÷ 13 x 200 – 8 x 300 – 5 ÷ 6 x 500 – approx. 4 x 630 – approx. 3 x 750

Swabs/min
Up to 2,800–3,000 (max output of CF1 or CF3)

Options
Mirror-machine version; 2,000-hour spare parts set; custom formats

Compatibility
With the appropriate adaptations, this model can be integrated into a production line with cotton swab production machines not manufactured by STREMA

Characteristics / technical specifications

• Product type: Automatic blister packaging machine
• Designed for producing blister packs with high format flexibility
• Sealing: ensures perfect sealing of PVC shell onto cardboard support
• Optional leaflet insertion supported
• Packaging materials: PVC blister + sealable cardboard + optional insert
• Throughput formats: 22 x 100; 16 ÷ 17 x 150; 12 ÷ 13 x 200; 8 x 300; 5 ÷ 6 x 500; approx. 4 x 630; approx. 3 x 750
• Maximum swabs/min: up to 2,800–3,000 (depending on CF1 or CF3 output)
• Available options: mirror-machine version, 2,000-hour spare parts set, custom formats
• Compatibility: can be integrated into production lines with appropriate adaptations
