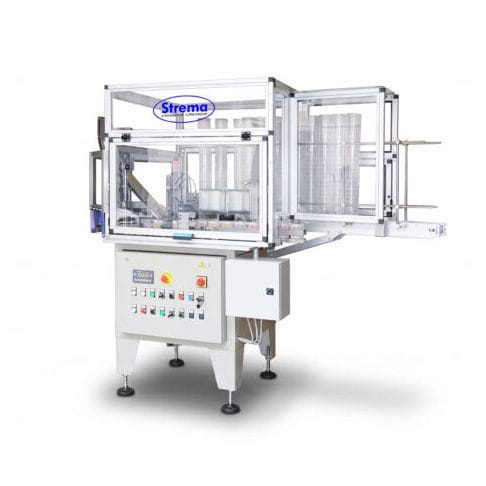

Automatic filler CB90US

bottlecontainerfor cosmetic products

Short description
Automatic filler for stackable cylindrical containers with separate lids. Compared with the CB90 (for non-stackable containers), the CB90US is engineered for high-speed, continuous line filling of stackable cylindrical containers and supports multiple container materials and production layouts.

Overview
The CB90US is an automatic filling system designed to process stackable cylindrical containers with independent lids. It provides continuous operation at high throughput and can be configured for different container materials, lid-handling solutions and line arrangements.

Key capabilities

• Robotics for handling and synchronization
• Multimaterial compatibility (PP, EPS, crystal PS, cardboard)
• Capping system for separate lids
• Flexible format changeover and customisation for production needs

Technical data (summary)

• Packaging: Stackable cylindrical containers (PP, EPS, crystal PS, cardboard)
• Throughput configurations: 24 x 50; 22 ÷ 24 x 100; 11 ÷ 12 x 200; 9 ÷ 10 x 300 (pieces/min)
• Swabs/min: Up to 2,000–2,500 (dependent on connected CF machine, e.g., CF1 or CF3)
• Options: Soundproof hood for lid handling; mirror-machine version; 2,000-hour spare parts kit; custom formats
• Compatibility: Can be integrated with third‑party cotton swab production machines with appropriate adaptations

Additional information
Designed specifically for stackable cylindrical containers with separate lids, the CB90US maintains high continuous output while allowing adjustments for material, format and line integration requirements.

Characteristics / technical specifications

• Model: CB90US
• Product type: Automatic filler for stackable cylindrical containers
• Compatible containers: PP, EPS, crystal PS, cardboard
• Lid configuration: Separate lids
• Typical throughput steps: See technical data (pieces/min)
• Maximum swabs output: Up to 2,000–2,500 (depending on connected CF machine)
• Available options: Soundproof hood, mirror version, 2,000-hour spare parts kit, custom formats
• Integration: Adaptable for integration with non-STREMA cotton swab machines (requires adaptations)
