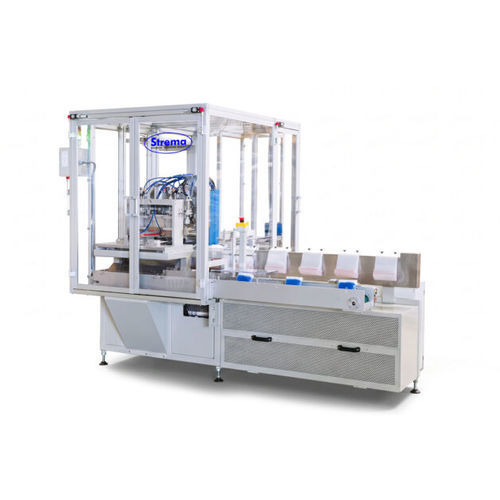

Weight bagging machine ZB40AT20

fully-automaticfor single-bagfor small pouch

Description
A complete "all-in-one" system for packaging cotton swabs, featuring automatic bag opening, filling and sealing with an integrated trim-extraction unit. Designed to operate with PE (simple, zip or string) and paper bags and to integrate into production lines.

Key features

• Automatic bag opening, filling and sealing
• Integrated trim-extraction system
• Multimaterial capability: PE and paper bags
• Flexibility in bag formats and easy line integration

Highlights

• High production speed ranges
• Multimaterial packaging (PE/paper)
• Format flexibility
• Integratable into automated production lines

Technical Data
Packaging
PE bags (simple, zip or string) or paper

Throughput
22 ÷ 25 x 100 – 15 ÷ 16 x 160 – 07 ÷ 08 x 300 – approx. 06 x 400

Throughput (paper bags/min)
18 ÷ 20 x 100 – 12.5 ÷ 13 x 160 – 10 x 200

Swabs/min
2,000–2,500 (maximum with CF1 or CF3)

Options

• Mirror machine version to improve line throughput
• Spare parts kit sized for 2,000 hours of operation
• Custom sizes and other customer-specific customizations

Compatibility
With appropriate modifications, this model can be integrated into production lines with cotton‑picking machines not manufactured by STREMA.

Technical specifications

• Model: ZB40AT20
• Function: Fully automatic bag packaging (opening, filling, sealing) with integrated trim‑extraction
• Bag types: PE (simple, zip, string) and paper
• Throughput (typical ranges): 22–25 x100; 15–16 x160; 7–8 x300; approx. 6 x400 (units/min as specified)
• Paper bags throughput: 18–20 x100; 12.5–13 x160; 10 x200 (units/min as specified)
• Swabs production capacity: 2,000–2,500 swabs/min (with CF1 or CF3 max)
• Available options: mirror version, 2,000‑hour spare kit, custom sizes
• Integration: compatible with non‑STREMA cotton‑picking machines after modifications
