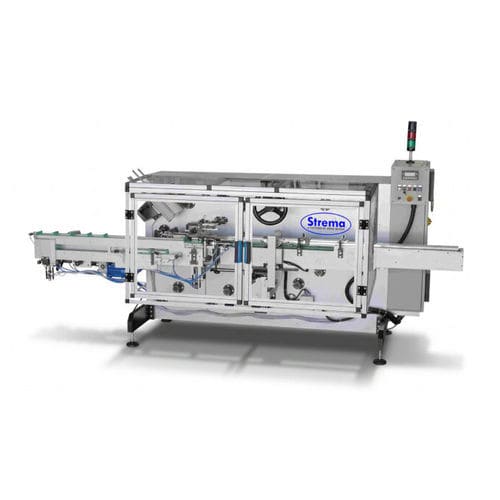

High-speed case packer SC03

automaticfor cartonsmixed case

Overview
Compact, precise and fast automatic case packer designed for packing products into pre-die-cut cardboard cartons. Suitable for medium to high production volumes and for integration into automated production lines.

Main performance
SC03 produces up to 30 cartons/min (typical example: 25 pcs per carton). When combined with feeding units CF1 or CF3, the complete line can reach a total output of approximately 2,400–2,500 swabs/min.

Packaging
Pre-die-cut cardboard cartons (pre-folded/pre-stamped cartons designed for rapid machine loading).

Throughput
25 ÷ 30 x 50 – 23 ÷ 25 x 60 – 20 ÷ 21 x 100 – 13 ÷ 14 x 150 – 10 ÷ 11 x 200 – 06 ÷ 07 x 300 (examples by carton capacity and machine speed).

Swabs/min
Up to 2,000–2,100 swabs/min (dependent on the max output of CF1 or CF3 feeding units).

Options

• Mirror (right/left) machine version to optimize line layout and performance
• Spare parts kit sized for approximately 2,000 hours of operation
• Custom carton sizes and format adapters
• Other process-specific customizations on request

Compatibility with other brands
With necessary mechanical and control adaptations, SC03 can be integrated into production lines that include cotton-feeding or picking machines not manufactured by STREMA.

Characteristics / technical specifications

• Model: SC03
• Packaging type: pre-die-cut cardboard cartons
• Typical carton capacity: 25 pcs per carton (example)
• Cartons/min (examples by carton size): 25–30; 23–25; 20–21; 13–14; 10–11; 6–7
• Line throughput with feeding units: up to ~2,400–2,500 swabs/min; CF1/CF3 quoted max output 2,000–2,100 swabs/min
• Available options: mirror version, spare parts kit (≈2,000 hours), custom sizes, further customizations
• Integration: adaptable for integration with third-party cotton-feeding machines with required modifications
