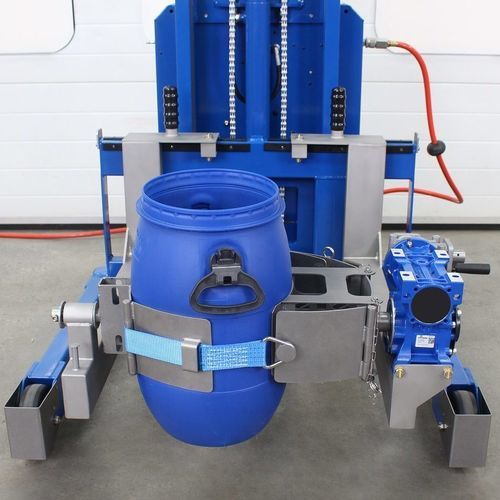

Stainless steel drum lifter INS01

for drumsindustrialfor the food industry

Overview
The Small Drum Insert INS01 is an economical accessory designed to increase the versatility of the STS Universal Drum Rotator. It enables safe handling of a range of smaller drums (originally for 25-litre drums) while maintaining hygienic stainless-steel contact surfaces suitable for regulated industries.

Key features

• Compatibility: fits drums with diameter <350 mm; originally designed for 25-litre drums but adaptable to many small containers.
• Quick fit system: two-pin securing mechanism allows mounting to an STS drum rotator in approximately 15–20 seconds for rapid swaps between machines.
• Material: manufactured in 304-grade stainless steel; parts vibratory polished to eliminate sharp edges and provide a hygienic finish.
• Universal integration: designed to work with the existing Universal Drum Band for safe lifting and rotation of small drums.
• Short-drum handling: suitable for short and very short drums (may require lifting from a pallet to provide clearance depending on machine).

Installation & usage notes

• Two-pin securing system for rapid mounting to an STS drum rotator (approx. 15–20 seconds).
• For very short drums, lift the drum off the pallet (not from the floor) to provide clearance for the band; centre the insert on the drum before lifting to ensure stable handling.
• Designed to be shared between machines when quick swaps are required for decanting small drums.

Materials & finish

• 304-grade stainless steel construction.
• Vibratory polished finish to remove sharp edges and provide a hygienic surface suitable for food and pharmaceutical applications.

The complete package (supply & support)

• Global shipping options available.
• Supplied with full documentation options (operation manual, load test certificate, UK/EC Declaration of Conformity, calibration certificate, circuit diagrams where applicable).
• Standard 2-year product warranty.
• Spare parts available for rapid global dispatch from the UK warehouse; parts can be ordered using part numbers or identified from images.

Additional product highlights

• Universal design for broad compatibility with small drums.
• Easy to operate with low maintenance requirements.
• Designed for frequent industrial use.

Specifications / technical data

• Model: INS01
• Compatible drum diameter: <350 mm
• Originally designed for: 25-litre drums (suitable for a range of smaller containers)
• Installation time: 15–20 seconds (two-pin securing system)
• Material: 304-grade stainless steel
• Finish: Vibratory polished (smooth, no sharp edges)
• Suitable industries: food, pharmaceutical and other sectors requiring hygienic stainless-steel components
• Warranty: 2-year standard warranty
