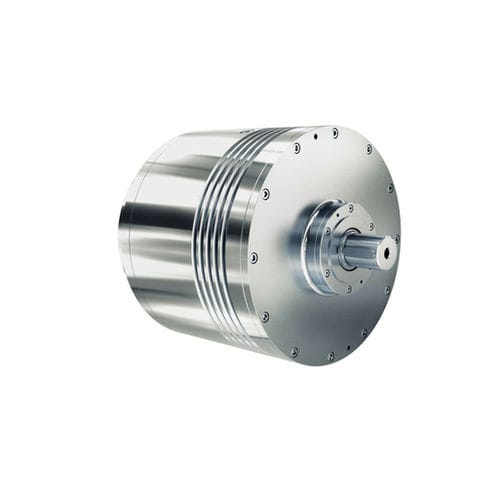

Planetary gear reducer ZP series

right angle> 10 kNmcentrifuge

The highly dynamic centrifuge drive for high drum and differential speeds with a proven flange design and all-steel construction. Overview The drives in the ZP – Planet Line are suitable for all types of centrifuges: ZPN – for centrifuges with a trailing scroll ZPV – for centrifuges with a leading scroll (triple-stage drives only) ZPR – regulated drive for centrifuges (four- shaft drive – triple-stage only) Features and Advantages of ZP – Planet Line Optimized Housing Coaxial all-steel housing optimized for use with centrifuges High Power Density High-power density and compact outer dimensions facilitate high-drum speeds Long Lifetime Long lifetime and high-operating safety due to high-gear interlocking security and optimised shaft and planetary bearings Lubrication Oil-bath lubrication with closed gearbox Suitable Suitable for centrifuge models with an internal or external input / Suitable for centrifuges with a trailing scroll (standard); optionally with a leading scroll / Suitable for centrifuges with a fixed input shaft (torque arm or double belt drive) or with separate BackDrive (ZPN / ZPV) or as an independent regulating drive (ZPR) ZP – Secondary drives Four different single stage ZP sizes from 40 to 800 Nm are also available for centrifuges with two drives (internal primary gearbox for high torque values and external secondary gearbox to increase the reduction ratio). Customizable Able to be designed according to individual customer specifications Balanced Complete housing balanced (DIN ISO 1940) ATEX Certified ATEX certification in accordance with Group II (optional)
