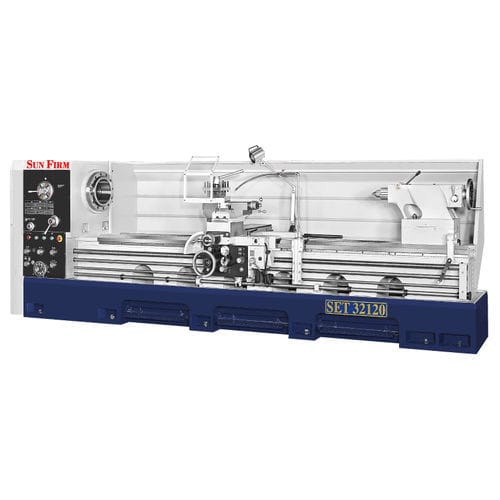

Conventional lathe SET series

horizontalflatbedmulti-spindle

Distance Between Center : 1500 mm ~ 7000 mm Bed Width : 460 mm Spindle Bore : 105 mm ~ 230 mm Capacity Swing Over Cross Slide - 500 mm (20") - 600 mm (23") - 700 mm (27-1/2") Swing in Gap - 1000 mm (40") - 1100 mm (44") - 1200 mm (47") Width of Gap - 225 mm (8-7/8") Distance Between Centers - 1500 mm (60") - 2000 mm (80") - 3000 mm (120") - 4000 mm (160") - 5000 mm (200") - 6000 mm (240") - 7000 mm (275") Headstock Spindle Bore - 105 mm / * 153 mm, 230 mm (OPT) Taper of Center - M.T. No. 5 / * M.T. No. 6 Number of Spindle Speeds - 12 Changes Feeds & Threads Cutting Longitudinal Feeds - 0.05-0.7 mm/rev Cross Feeds - 0.025-0.35 mm/rev Inch Threads - 2-28 Thread/in, (D.P. 4-56) Metric Threads - 0.8-14 mm / Thread, (M.P. 0.5-7) Leadscrew - Ø 45 mm (1-3/4") x 2 T.P.I. / * P 12 mm (OPT) Carriage Tailstock Quill Diameter - 95 mm (3-3/4") / * 105 mm (4-1/8") Quill Travel - 230 mm (9") Taper of Quill Center - M.T. No.5 / * M.T. No.6 Bed - One-piece machine bed which is most suitable for heavy duty machining Width of Bed - 460 mm (18-1/8") Length of Bed - 3050 mm (120") - 3550 mm (140") - 4550 mm (180") - 5550 mm (219") - 6550 mm (258") - 7550 mm (298") - 8550 mm (338") Standard Accessories Back Plate 1 / Pc Center Sleeve 1 / Pc Center(M.T.5#) 2 / Pcs Tool Post Wrench 1 / Pc Anchor Bolt 1 / Set Tool Box &Tool 1 / Set Coolant Pump 1 / Set Work Light 1 / Pc Optional Accessories 3-Jaw Scroll Chuck 4-Jaw Independent Chuck 4-Jaw Face Chuck Face Plate Taper Turning Attachment Follow Rest Longitudinal Rapid Traverse Device Steady Rest CE
