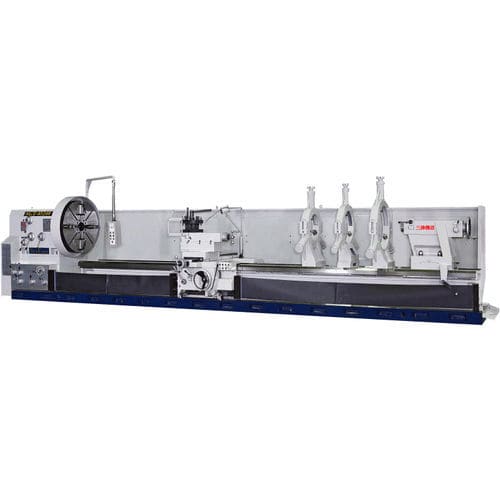

Conventional lathe SGT series

horizontal2-axisflatbed

Distance Between Center : 1500 mm ~ 7000 mm Bed Width : 665 mm Spindle Bore : 153 mm ~ 310 mm Capacity Swing Over Cross Slide - 850 mm (33") - 1000 mm (40") Swing in Gap - 1700 mm (67") - 1850 mm (72") Width of Gap - 560 mm (22") Distance Between Centers - 1500 mm (60") - 2000 mm (80") - 3000 mm (120") - 4000 mm (160") - 5000 mm (200") - 6000 mm (240") - 7000 mm (275") Headstock Spindle Bore - 153 mm(6") / *230 mm(9"), *310 mm(12") (Opt.) Taper of Center - M.T. No. 6 Feeds & Threads Cutting Leadscrew - 57 mm (2-1/4") Pitch of Leadscrew - 2 T.P.I / *P12mm (Opt.) Inch Threads - 1/4-30 TPI (70 kinds) Metric Threads - 1-120 mm (62 kinds) D.P Threads - 1-120 D.P. (70 kinds) M.P Threads - 0.25-30 M.P. (53 kinds) Longitudinal Feeds - 0.085-10.08 mm/rev (0.004-0.40 in/rev) Cross Feeds - 0.042-5.04 mm/rev (0.002-0.20 in/rev) Carriage Rapid Travel Speed to Carriage - 2000 mm/min (80"/min) Tailstock Quill Diameter - 125 mm (4-7/8") Quill Travel - 340 mm (13-3/8") Taper of Quill Center - M.T. No.6 Bed - One-piece machine bed which is most suitable for heavy duty machining Width of Bed - 665 mm (26") Main Motor - 20HP / * 25HP (Opt.) Rapid Travel Motor - 1HP Standard Accessories Steady Rest 1 / Pc Center 2 / Pcs Tool Post Wrench 1 / Pc Tool Box & Tool 1 / Set Anchor Bolt & Block 1 / Set Optional Accessories 3-Jaw Scroll Chuck 1 / Pc 4-Jaw Independent Chuck 1 / Pc Follow Rest 1 / Pc Taper Attachment 1 / Set Coolant Pump 1 / Set
