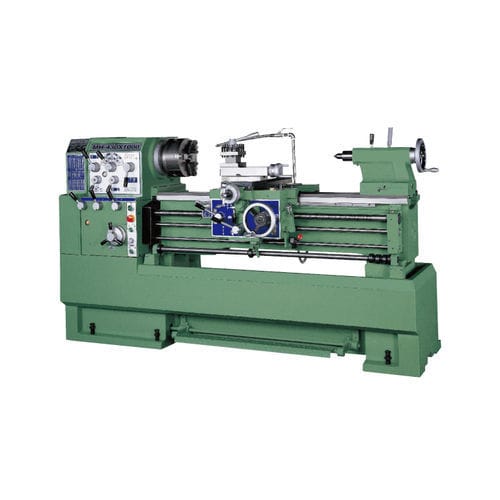

Conventional lathe MH series

horizontalflatbedmulti-spindle

Swing Over Bed : 430 mm ~ 480 mm Distance Between Center : 760 mm ~ 1500 mm Bed Width : 300 mm Spindle Bore : 58 mm Swing Over Cross Slide - 240 mm - 270 mm Swing Over Gap - 650 mm - 700 mm Distance Between Centers - 760 mm - 1000 mm - 1500 mm - 1000 mm - 1500 mm Headstock Spindle Bore - Ø 58 mm Type of Spindle Nose - ASA-A1-6 Taper of Center - MT No. 4 Number of Spindle Speeds - 12 Changes Threading & Feeding Lead Screw Range of Inch - 35 mm x 4 T.P.I. or P 6 mm (opt.) Threads Range of Inch Threads - 4-56 TPI Threads Range of Metric Threads - 0.5 - 7 mm Longitudinal Feeds - 0.05 - 0.8 mm Cross Feeds - 0.02-0.58 mm Carriage Tailstock Tail Stock Diameter of Spindle - 58 mm Tail Stock Spindle Travel - 150 mm Tail Stock Taper of Center - MT No. # 4 Width of Bed - 300 mm Standard Accessories Dog Plate 1 / Pc Center MT #4 2 / Pcs Center Sleeve 1 / Pc Tool Post Wrench 1 / Pc Tool Box 1 / Set Optional Accessories 3-Jaw Scroll Chuck ø9 1 / Pc 4-Jaw Independent Chuck ø10 or ø12" 1 / Pc Follower Rest 1 / Pc Coolant Pump 1 / Set Taper Attachment 1 / Set Steady Rest 1 / Pc Rear Cutter Rest 1 / Pc
