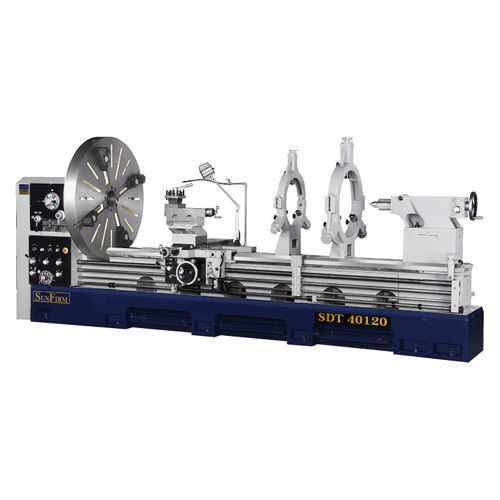

Conventional lathe SDT series

horizontal2-axismulti-spindle

Distance Between Center : 1500 mm ~ 7000 mm Bed Width : 510 mm Spindle Bore : 105 mm ~ 230 mm Capacity Swing Over Cross Slide - 580 mm (22.8") - 680 mm (26.8") - 780 mm (30.7") - 880 mm (34.7") - 980 mm (38.6") Swing in Gap - 1100 mm (43") - 1200 mm (47") - 1300 mm (51") - 1400 mm (55") - 1500 mm (59") Width of Gap - 250 mm (10") Distance Between Centers - 1500 mm (60") - 2000 mm (80") - 3000 mm (120") - 4000 mm (160") - 5000 mm (200") - 6000 mm (240") - 7000 mm (275") Headstock Spindle Bore - 105 mm / * 153 mm, 230 mm (OPT) Taper of Center - M.T. No. 5 / * M.T. No. 6 Number of Spindle Speeds - 12 Changes Feeds & Threads Cutting Longitudinal Feeds - 0.05-0.7 mm/rev Cross Feeds - 0.025-0.35 mm/rev Inch Threads - 2-28 Thread/in, (D.P. 4-56) Metric Threads - 0.8-14 mm / Thread, (M.P. 0.5-7) Leadscrew - Ø 45 mm (1-3/4") x 2 T.P.I. / * P 12 mm (OPT) Carriage Cross Slide Travel - 585 mm (23") Compound Rest Travel - 250 mm (10") Tailstock Quill Diameter - 105 mm (4-1/8") / * 125 mm (4-7/8") Quill Travel - 230 mm (9") Taper of Quill Center - M.T. No.6 Bed - One-piece machine bed which is most suitable for heavy duty machining Width of Bed - 510 mm (20") Standard Accessories Back Plate 1 / Pc Center Sleeve 1 / Pc Center(M.T.6#) 2 / Pcs Tool Post Wrench 1 / Pc Anchor Bolt 1 / Set Tool Box &Tool 1 / Set Coolant Pump 1 / Set Work Light 1 / Pc Optional Accessories 3-Jaw Scroll Chuck 4-Jaw Independent Chuck 4-Jaw Face Chuck Face Plate Taper Turning Attachment Follow Rest Longitudinal Rapid Traverse Device Steady Rest CE
