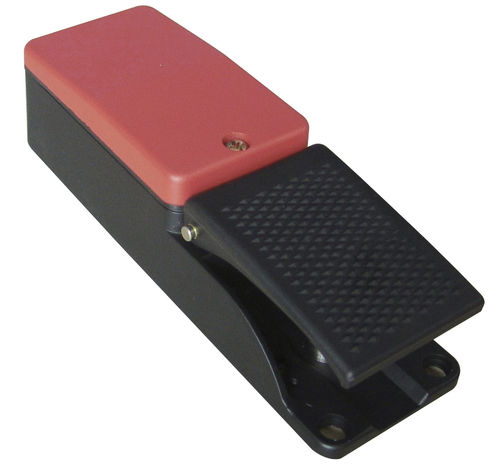

Control foot switch FS-61/FS-61Gelectricsingle pedalmomentary
Add to favorites
Compare this product
Characteristics
- Function
- control
- Technology
- electric
- Type
- single pedal, momentary, DPDT
- Other characteristics
- with cover, compact, waterproof, IP65
- Applications
- for medical applications, for railway applications, for dental applications
Description
Features:
* Robust aluminum alloy die cast body
* Choice of different type of contact blocks
* Water-proof to IP65(IP67 available on special request)
* Galvanically separated contacts
* Screw terminals with self-lifting clamps for easy wirting
* Positive Opening of NC contacts
* Safety reset option available
* UL/CUL approval(E216958)
* Threaded Hole available in:PG 13.5,m20x1.5 and 1/2NPT
Specifications:
Operating Frequency:60 ops/min
Insulation Resistance:>100mΩ@500VDC
Contact Resistance: <25mΩ
Rated Current/Voltage10A/600V AC A600/AC15 Q300/DC13
Inrush CurrentComplies with IEC947-5-1:AC15/DC 13
Dielectric Strength: 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life: Mechanically 1.0×106(operations)
Electrically 5×105 (operations)
Operating Temperature:-30~+80℃(-22~176°F)
Degree of Protection: IP65 (IP68 available on request)
