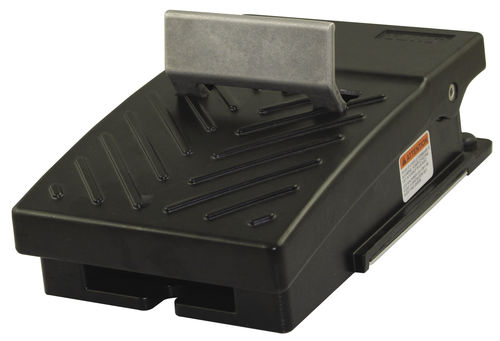

Control foot switch FSM/FS41-A

electricsingle pedalwaterproof

FS-4 Medium Duty Foot Switches Features: * Robust aluminum alloy die cast body * Choice of different type of contact blocks * Water-proof to IP65(IP67 available on special request) * Galvanically separated contacts * Screw terminals with self-lifting clamps for easy wirting * Positive Opening of NC contacts * Safety reset option available * UL/CUL approval(E216958) * Threaded Hole available in:PG 13.5,m20x1.5 and 1/2NPT Specifications: Operating Frequency:60 ops/min Insulation Resistance:>100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage10A/600V AC A600/AC15 Q300/DC13 Inrush CurrentComplies with IEC947-5-1:AC15/DC 13 Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: Mechanically 1.0×106(operations) Electrically 5×105 (operations) Operating Temperature:-30~+80℃(-22~176°F) Degree of Protection: IP68
