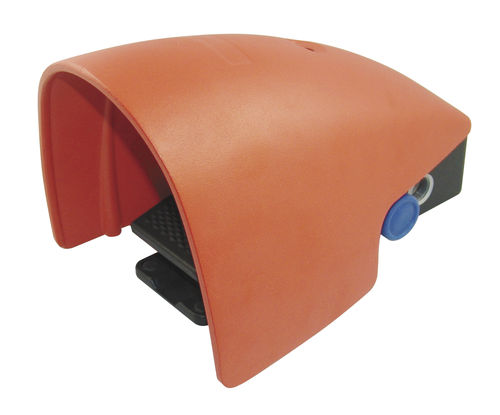

Control foot switch FS-6
securityelectricsingle pedal

control foot switch
control foot switch
control foot switch
Add to favorites
Compare this product

Characteristics

Function
control, security
Technology
electric
Type
single pedal, 2 pedals
Other characteristics
with cover, with emergency stop, IP65
Applications
for OR microscopes, for medical lasers, for dental applications

Description

FS-6 Foot Switches with Emergency Stop Features: This is a special design foot switch with two stage momentary contacts.There are noticable resistance between stage one and stage two when pressing the pedal without reaching the pressure point,the foot switch operates in the normal model.In case of emergency,the user depresses the foot pedal even harder instead of releasing the pedal.This special safety foot switch will break electrical contact and locked.The manual reset button need to be pushed before it can operate in normal model.This can quickly prevent damage to the machine or injury to human life. Specifications: Operating Frequency:60 ops/min Insulation Resistance:>100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage10A/600V AC A600/AC15 Q300/DC13 Inrush CurrentComplies with IEC947-5-1:AC15/DC 13 Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: Mechanically 1.0×106(operations) Electrically 5×105 (operations) Operating Temperature:-30~+80℃(-22~176°F) Degree of Protection: IP65 (IP68 available on request)
