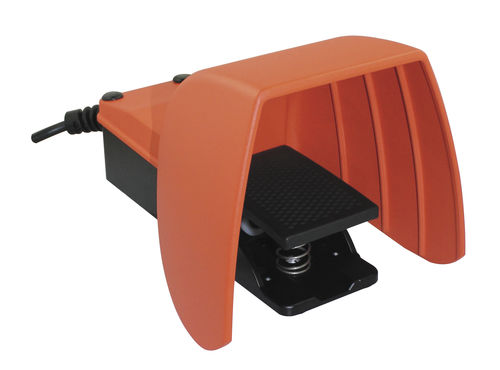

Control foot switch FS61G-SP-S-1ZR

securityelectricsingle pedal

FS-6 Press Brake Foot Switch Features: These foot switches are designed for some critical applications such press brake machine control. These foot switches have at least one of the pedals with 3 positions, with a pressure point, to control dangerous movements. For press brake control as an example: press the pedal to lower down a press brake. It has 4 working contacts ( 2NC+2NO) to drive the movement and one safety switches (1 positive opening NC contact + 1NO) to stop the movement. Pressing the foot pedal, until the pressure point where resistance is noticeable. This allows the changeover of the 2 working contacts and press is moving downward. When press harder beyond the pressure point, the 2 working contacts return to their first position and the positive opening safety contact is activated as redundant safety circuit in order to initiate mmediately the dangerous movement. A restart of the machine is only possible after releasing the foot switch. Specifications: Operating Frequency: 60 ops/min ＞ Insulation Resistance: ＞100mW @ 500V DC Contact Resistance: ＜25mW Rated Current/Voltage: 10A/600V AC A600/AC15 Q300/DC13 Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non- current carrying parts Service Life: Mechanically 1 x106 (operations) Electrically 5 x105 (operations) Operating Temperature: -30~+80oC (-22~176oF) Degree of Protection: IP65, NEMA type 2, 4, 13 (IP68, NEMA type 6, 6P available on request)
