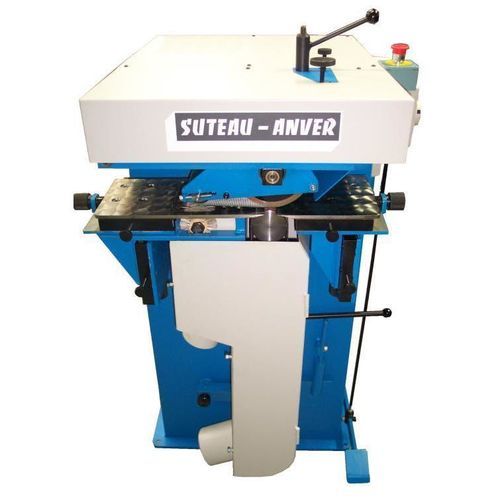

Roller sander 93

beltstationaryelectric

Overview
Designed and manufactured by SUTEAU-ANVER, the Model 93 is a 300 mm roughing and sanding machine dedicated to shoe soles, leather goods and related industries.

Applications

• Rough shoes' soles before gluing and welding.
• Remove thin thickness in leather goods by roughing or sanding.
• Sanding rubberized fabric in nautical applications before bonding.

Technical features

• Handling:
• Height: 1350 mm
• Length: 600 mm
• Width: 950 mm
• Weight: 390 kg
• Electrical supply and power:
• Electric supply: 220/380 V three-phase + earth + neutral, 50 Hz
• Line power: 3300 W

Additional details
A dust vacuum cleaner can be connected to the bottom of the roller guard (connection diameter: 120 mm). Upper roller speed: 7 rev/min (low) and 19 rev/min (high). The part to be sanded is slightly pinched between the front table and the upper roller and then driven by the roller.

Options

• Sanding widths: 40 mm / 100 mm or on request.
• Sanding by sleeves or endless belts.

Technical specifications

• Machine type: Soles roughing / sanding machine, 300 mm.
• Height: 1350 mm.
• Length: 600 mm.
• Width: 950 mm.
• Weight: 390 kg.
• Electric supply: 220/380 V three-phase + earth + neutral, 50 Hz.
• Line power: 3300 W.
• Dust extraction connection diameter: 120 mm.
• Upper roller speed: 7 rev/min (low) / 19 rev/min (high).
• Operation: part pinched between front table and upper roller and driven by the roller.
• Available sanding formats: 40 mm, 100 mm or on request; sanding by sleeves or endless belts.
