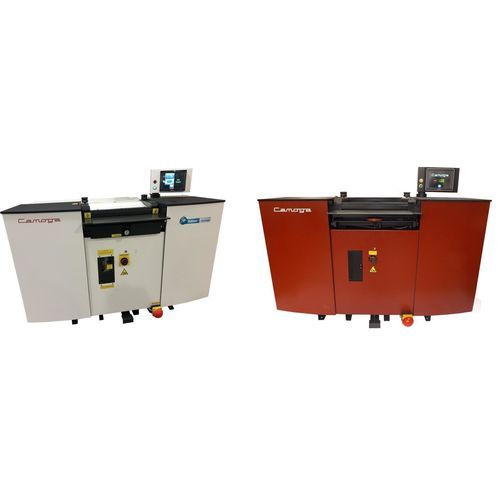

Splitting machine CAMOGA

Description The CAMOGA splitting machine evens and reduces material thickness with a continuous band knife system. It is designed for producing shoes, belts, wallet and handbag components and a wide range of leather goods, and is also suitable for synthetic materials, textiles, foams and plastics.

Fundamental principles

• Precision and consistent accuracy to ensure repeatable thickness control
• Ergonomics and flexibility to improve throughput and reduce operating costs
• Robust design for long service life (expected running times up to 25–30 years)

Business fields

• Synthetic materials
• Textiles
• Leather
• Foams
• Plastics
• Felt
• Rubber
• Other sheet materials

Technical features

• Automatic advance of the band knives
• Automatic band-knife adjustment at change (no parallelism adjustment required)
• Ceramic or diamond sharpening unit with micrometric accuracy
• Quick bevel-width adjustment
• Simultaneous sharpening control of the two grindstones
• Band-knife guide unit with automatic adjustment
• Independent extraction unit separating sharpening dust and scraps
• Pneumatic quick regulation of working pressure
• User display with instructions, messages, alarms and maintenance information
• Digital thickness visualization
• Speed inverter for material loading
• Optical bevel control
• Cooling of band-knife guides on wide-width models
• Safety system compliant with CE standards
• Low noise operation
• Easy access to components for fast servicing

Options

• Upper rule (min. thickness 0.2 mm)
• Upper steel roller (min. thickness 0.6 mm)
• Lower knurled steel roller
• Lower rubber roller
• Belts tool
• Diamond grindstone
• Other customer-specific options

Additional information A wide range of band knives, grindstones and spare parts is available and normally kept in stock to support maintenance and fast replacement.

Available versions

• C420
• C520
• C620
• C720
• C820
• C1520
• CN411
• Compact
• Star

Characteristics / technical specifications

• Automatic advance of the band knives
• Automatic band-knife adjustment at change (no parallelism adjustment required)
• Ceramic or diamond sharpening unit with micrometric accuracy
• Quick bevel-width adjustment
• Simultaneous control of both grindstones
• Automatic band-knife guide adjustment
• Independent extraction unit separating sharpening dust and scraps
• Pneumatic quick regulation of working pressure
• User display with instructions, messages, alarms and maintenance info
• Digital thickness display
• Speed inverter for material loading
• Optical bevel control
• Cooling of band-knife guides on wide models
• CE-standard safety system
• Low noise level
• Accessible components for quick servicing
