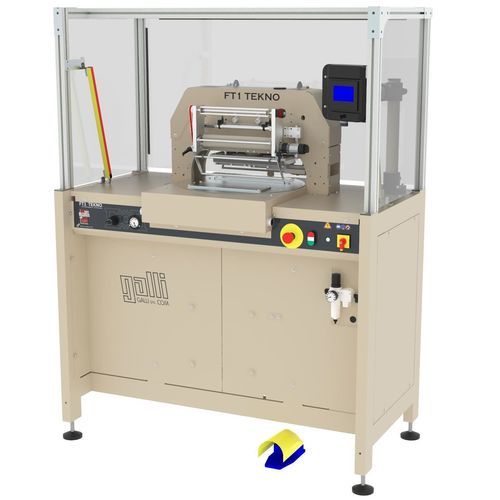

Die cutting machine GALLI FT1 TEKNO

by heatingfor plasticsfor fabrics

Overview
Hydraulic double-head cutting and embossing machine with a 2-position rotary table for cutting and hot embossing of flat materials up to 500 mm wide. Electronic controls provide precise embossing height and temperature adjustment for repeatable process control.

Available versions
Version with double heating (upper and lower) without foil unit and without vacuum table — FS TEKNO 2R. Other configurations (foil feeder, vacuum table, additional heating groups) available on request.

Technical specifications

• Hydraulic power: 10 tons
• Embossing area: 280 x 110 mm
• Electronic embossing height control
• Upper heating group (double heating available)
• Electronic temperature control
• LED work light
• Automatic and programmable foil movement
• Vacuum table (optional)
• Maximum material width: 500 mm
• Electronic adjustment via touch screen
• 2-position rotary table, double-head configuration

Applications

• Suitable for cutting and embossing: leather, cardboard, plastics, coated textiles and similar flat materials
• Typical uses: packaging, bookbinding, labels, upholstery components and decorative finishes

Control and options

• Touch-screen interface for process programming and parameter recall
• Programmable foil feed and positioning
• Electronic temperature and height monitoring for repeatability
• LED lighting for work area visibility
• Optional vacuum table and configurable heating groups
