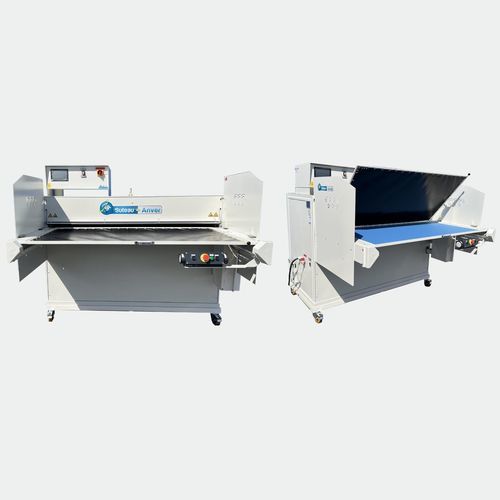

Manual press MEPP

electronicfusingleather

Product overview
This MARTIN thermo-fusing press integrates the SUTEAU-ANVER range and is designed to apply thermo-adhesive on leather using a patented pressure system based on a rubber 'lung' membrane rather than two rigid plates, providing uniform pressure across the working area even with pieces of different thicknesses.

Key features

• Patented pressure system using a rubber membrane ('lung membrane system') delivering uniform pressure per cm2 across the working area.
• Pressure capability significantly higher than rigid-plate systems (described as five times more powerful).
• Temperature up to 250 °C.
• Pressure adjustable from 0 to 1400 gr/cm2 (standard range); XTP range designed for high pressure up to 2 kg/cm2.
• Cycle times adjustable from 0 to 120 seconds.
• Electronic system to control pressure and temperature.
• Tefloned soft double plates (manual) to work alternately and improve productivity.
• Reinforced structures for XTP high-pressure versions.
• Machine used for various applications with highest quality.

A complete range

• Standard range: MEPP 130 / 150 / 160 / 170 / 180
• XTP range: MEPP 130XTP / 150XTP / 160XTP / 170XTP / 180XTP (made for high pressure up to 2 kg/cm2)

Available versions

• SERIE STANDARD: MEPP 130 / 150 / 160 / 170 / 180
• SERIE XTP: MEPP 130XTP / 150XTP / 160XTP / 170XTP / 180XTP

Technical specifications

• Temperature: up to 250 °C
• Pressure (standard): 0 to 1400 gr/cm2
• Pressure (XTP range): up to 2 kg/cm2
• Cycle time: 0 to 120 seconds
• Pressure system: patented rubber 'lung' membrane for uniform pressure
• Control: electronic system for pressure and temperature control
• Work plates: Tefloned soft double plates (manual alternation)
• Structure: reinforced for XTP high-pressure versions
