Polyolefin tube SBRS-125H
protectiondouble-walledextruded

polyolefin tube
polyolefin tube
Add to favorites
Compare this product


Characteristics

Material
polyolefin
Applications
protection
Other characteristics
flame-retardant, extruded, UV-resistant, halogen-free, double-walled
Inner diameter

Max.: 50 mm
(1.969 in)

Min.: 2.4 mm
(0.094 in)

Pressure

10.4 MPa

Temperature

Max.: 125 °C
(257 °F)

Min.: -45 °C
(-49 °F)

Description

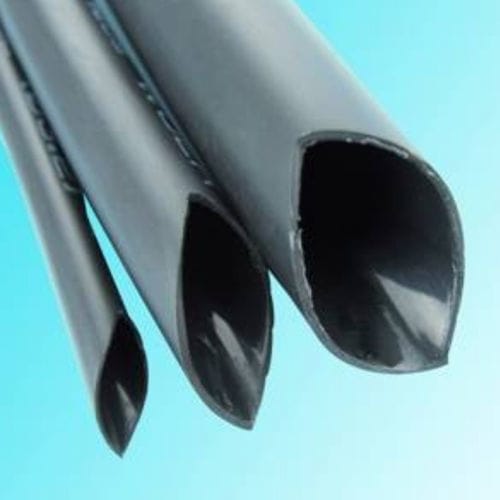

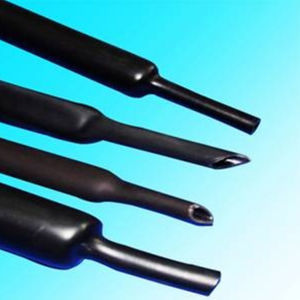

SBRS-125H (3X)isacross-linked polyolefin tube that is extruded with an inner layer of adhesive.The inner layer of adhesive, with superior sealing capability, is also a bufferagainst mechanical strain. Dual wall heat shrink tubing is designed to providesuperior sealing against water, corrosive gas and chemicals. Typicalapplications include environmental sealing of in-line splices, sealing andstrain relief of connectors and terminals, abrasion protection and electricalinsulation of automotive wiring harness splices and valuable components, fleet& marine sealing & protection and wire bundling etc. Features ● Shrink ratio:3:1 ● Flame retardant outer layer,halogen free,UV resistant ● Shrink temperature:70°C~125°C ● RoHS compliant ● Standard colors: black, other colors are available on your request
