Disc valve SBP
manualfor controlmounting flange

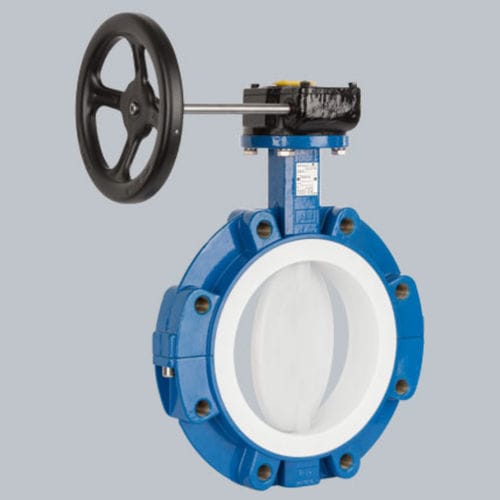

Disc valve - SBP - Swissfluid AG - manual / for control / mounting flange
Disc valve - SBP - Swissfluid AG - manual / for control / mounting flange
Add to favorites
Compare this product

Characteristics

Type
disc
Operation
manual
Function
for control
Body
mounting flange, large
Applications
flange, liquids, wafer
Material
plastic, PTFE, stainless steel, cast iron, PVDF
Other characteristics
ISO, DIN, ANSI
DN

Max.: 1,000 mm
(39.37 in)

Min.: 25 mm
(0.984 in)

Pressure

Max.: 16,000 mbar
(232.1 psi)

Min.: 1 mbar
(0 psi)

Temperature

Max.: 230 °C
(446 °F)

Min.: -40 °C
(-40 °F)

Flow rate

Max.: 28,420 m³/h
(1,003,642.83 ft³/h)

Min.: 3 m³/h
(105.94 ft³/h)

Description

Plastic lined butterfly valves SBP are available in either wafer or lug style for on/off, throttling or control applications for liquid, powdery media or gaseous service. Main features • Large selection of different materials and trims • Dynamic, live loaded stem seal according to TA-Luft • Flow-optimized disc for high cv values • Mechanically locked in disc encapsulation • Blow-out proof one-piece disc/stem assembly • Disc features a rated breaking-point outside the atmospheric seal • Wide, chambered flange face • Hysteresis free throttling characteristic • ISO mounting flange for direct automation
