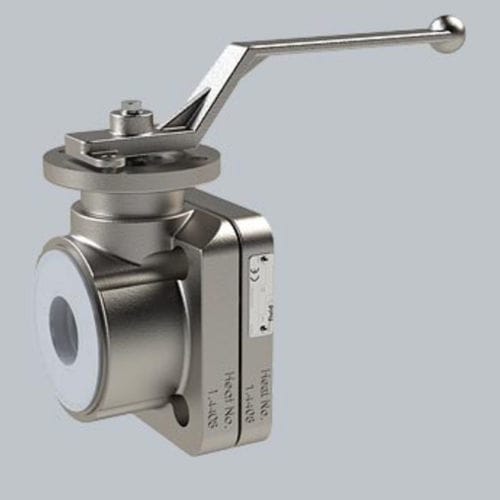

Ball valve SBWlevershut-offcontrol
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- control, shut-off
- Media
- for gas
- Body
- stainless steel, PVDF
- Applications
- liquids, for vacuum, shaft
- Other characteristics
- ISO, DIN
- DN
Max.: 80 mm
(3.15 in)Min.: 25 mm
(0.984 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)
Description
Fully lined short pattern, Wafer-style Ball Valves for shut-off and control of corrosive liquids and gaseous media.
Main features
• light weight and space-saving two-piece body with metal-to-metal joint
• Anchored body lining ideally suited for vacuum applications
• Dynamic, maintenance-free shaft sealing acc. to ISO 15848-1
• One-piece ball/shaft, blow out proof, core of SS Duplex with PFA-encapsulation
• Rated breaking point outside of valve
• Ball options such as V-port, Cs-ball or with pressure relief bore
