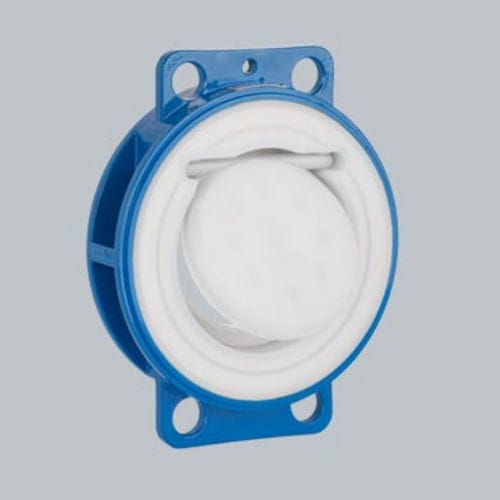

Swing check valve SSCdiscDINflow control
Add to favorites
Compare this product
Characteristics
- Type
- swing, disc
- Connexion
- DIN
- Applications
- flow control, for corrosive liquids
- Material
- stainless steel, cast steel
- Other characteristics
- horizontal
- DN
Max.: 600 mm
(23.622 in)Min.: 40 mm
(1.575 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)
Description
Fully lined Swing Check Valves for safe non-return flow control of corrosive process media.
Main features
• Wafer-style body, two- and three-piece, DIN/ANSI combined
• Centering lugs for safe installation
• Tilted disc (to shut by gravity even when pipe isn't completely level)
• Self-retaining disc, no counter flanges needed to hold the disc in place
• Horizontal or vertical installation
• Integrated sealing lip (to seal at low differential pressures)
Technical data
Flanges
EN 1092-1 B1
ANSI 150lbs
Face to face - EN 558-1 series 20 - ASME B16.10
Body - Cast steel 1.0619 - ASTM A216 WCB
Lining - PFA, PFA-AS (conductive)
Valve disc - PFA, PFA-AS-encapsulated (conductive)
Operating conditions - (depending on material selection)
Options
Valve disc - SS316L, Titanium Grade 2, Hastelloy C
