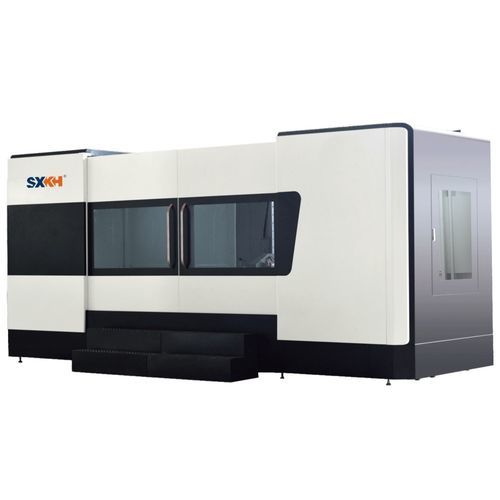

CNC drilling and milling machine DHD-16133-axisdeep hole
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Number of axes
- 3-axis
- Applications
- deep hole
- Drilling diameter
Max.: 32 mm
(1.26 in)Min.: 4 mm
(0.16 in)- Power
30,000 W
- Rotational speed
4,500 rpm
(28,274.3 rad.min-1)- Weight
12 t
(13 us ton)
Description
Three coordinates NC linkage runs automatically.
Slender deep hole machining process without return,drilling efficiency is as high as 6 times more than ordinary drilling machines.
Processing aperture range,gun drill:30-35mm, BTA:30 18-65-mm( BTA is optional).
Unilateral processing depth depth of up to 2500 mm, legth to diameter ratio of 100 or higner .
With the ideal size accuraacy, hole drilling accuracy of straightness,and roughness .
