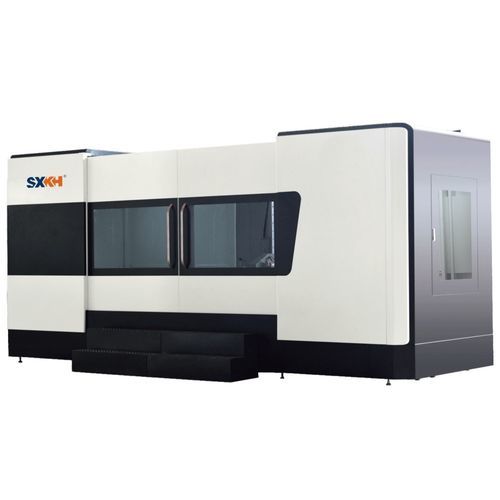

CNC deep hole drilling machine DHD1616deep holehorizontal3-axis
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Applications
- deep hole
- Other characteristics
- horizontal, 3-axis
- Power
32 W
- Weight
14 t
(15 us ton)
Description
PRODUCT FEATURES
* Three coordinates NC linkage runs automatically.
*Slender deep hole machining process without return.
*Processing aperture range:gun drill 30-35mm,BTA 18-65mm(BTA is optional)
Model: DHD-1616
Drilling aperture: Φ4-Φ32mm
Drilling depth: 1600 mm
Table horizontal : 1600mm
Main spindle vertical: 1200mm
Spindle speed 0-6000r/min
Feed speed 0-3000 mm/min
Size 1750*1200
Max loading capacity 12T
Spindle power 11-15kw
X axis motor 2.9kw
Y axis motor 2.9kw
Z axis motor 2.3kw
Power: 32kw
Cooling system:
Cooling pressure: 2-110kg/cm²
Rate of flow: 6-80L/min
Machine weight: 14T
CNC System: SYNTEC 11MA
