CNC deep hole drilling machine DHD-3020
horizontal3-axisdeep hole

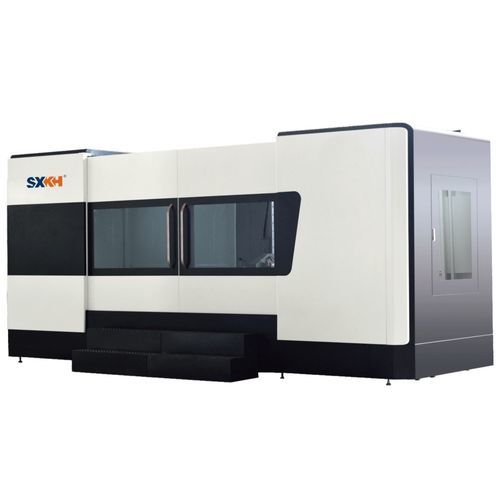

CNC deep hole drilling machine - DHD-3020 - SXKH GLOBAL - horizontal / 3-axis / deep hole
CNC deep hole drilling machine - DHD-3020 - SXKH GLOBAL - horizontal / 3-axis / deep hole
CNC deep hole drilling machine - DHD-3020 - SXKH GLOBAL - horizontal / 3-axis / deep hole - image - 2
CNC deep hole drilling machine - DHD-3020 - SXKH GLOBAL - horizontal / 3-axis / deep hole - image - 3
Add to favorites
Compare this product
Go to the SXKH GLOBAL website for more information

Characteristics

Type
CNC
Structure
horizontal
Number of axes
3-axis
Applications
deep hole
Drilling diameter

Max.: 35 mm
(1.38 in)

Min.: 4 mm
(0.16 in)

Power

42,000 W

Rotational speed

4,500 rpm
(28,274.3 rad.min-1)

Weight

23 t
(25 us ton)

Description

PRODUCT FEATURES * Three coordinates NC linkage runs automatically. *Slender deep hole machining process without return. *Processing aperture range:gun drill 30-35mm,BTA 18-65mm(BTA is optional) Model: DHD-3020 CNC axis travel(X,Y):3000mm,1500mm Drilling capacity: Φ4-Φ35mm Maximum drilling stroke(Z Axis travel):2000mm Spindle Taper:BT40 Max. Speed of spindle:4500 rpm Spindle power: 11kw Spindle torque: 157.5nm Fast feed (X,Y,Z): 10m/min Max. table load capacity: 20 ton Measurement: 3000*1600mm Total power: 42 kw CNC System: SYNTEC 22MA
