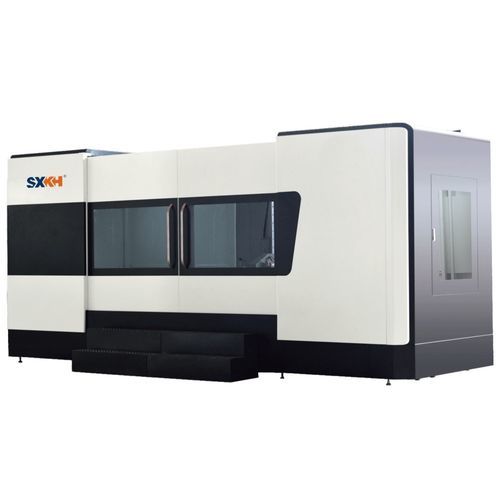

CNC deep hole drilling machine DHD2016deep holehorizontal3-axis
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Applications
- deep hole
- Other characteristics
- horizontal, 3-axis
- Power
36 W
- Weight
17 t
(19 us ton)
Description
PRODUCT FEATURES
* Three coordinates NC linkage runs automatically.
*Slender deep hole machining process without return.
*Processing aperture range:gun drill 30-35mm,BTA 18-65mm(BTA is optional)
Model: DHD-2016
Drilling aperture: Φ4-Φ32mm
Drilling depth: 1600 mm
Table horizontal : 2000mm
Main spindle vertical: 1200mm
Spindle speed 0-6000r/min
Feed speed 0-3000 mm/min
Size 2100*1200
Max loading capacity 14T
Spindle power 11-15kw
X axis motor 4.4kw
Y axis motor 4.4kw
Z axis motor 2.3kw
Power: 36kw
Cooling system:
Cooling pressure: 2-110kg/cm²
Rate of flow: 6-80L/min
Machine weight: 17T
CNC System: SYNTEC 11MA
