DC servo-drive SOMANET Integro 6

EtherCATEthernetProfiNet

Product overview

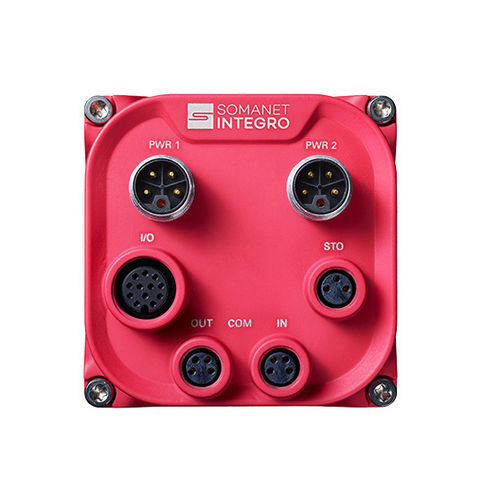

SOMANET Integro 6 servo drive [IM60-048-060-ECMH-M2G3-STO-01]. Example configuration shown on page: Power: 600 W; Connector Variant: Metric 2 Power Connectors; Field Bus: EtherCAT; Integrated Encoder: 18 bit, Multiturn: Yes; IO: 24 V Out + 2x AI + 2x DIO + 1x DI + 1x Ext. Enc.; Safety: STO+SBC via IO; Functionality Set: Full Performance Servo.

Available configuration options

• Power: 600 W or 300 W
• Connector Variant: Metric 2 Power Connectors; Metric 1 Power Connector (available on request); Y-Tec; I-Tec; Open Leads (available on request)
• Field Bus: EtherCAT; EtherNet/IP; PROFINET; CAN (available on request); Generic Ethernet
• Integrated Encoder - Resolution: 18 bit; 14 bit (available on request); 12 bit (available on request); No integrated encoder (available on request)
• Multiturn: Yes; No (available on request)
• Inputs / Outputs: IO: 24 V Out + 2x AI + 2x DIO + 1x DI + 1x Ext. Enc.; IO: 24 V Out + 2x DI (available on request); IO: None (available on request)
• Safety Option: STO+SBC via IO; None (available on request)
• Functionality Set: Full Performance Servo; Full Performance Servo - Micro PLC Integrated (available on request); Servo with Limited Command Input Dynamics (available on request)

Notes
The product is offered with multiple configurable variants (power, connectors, field bus, encoder resolution, I/O, safety and functionality set). The example configuration shown corresponds to a 600 W variant with EtherCAT, integrated 18 bit encoder with multiturn, and comprehensive I/O and safety options.

Technical specifications

• Power: 600 W or 300 W
• Connector Variant: Metric 2 Power Connectors; Metric 1 Power Connector (on request); Y-Tec; I-Tec; Open Leads (on request)
• Field Bus: EtherCAT; EtherNet/IP; PROFINET; CAN (on request); Generic Ethernet
• Integrated Encoder - Resolution: 18 bit; 14 bit (on request); 12 bit (on request); No integrated encoder (on request)
• Multiturn: Yes (standard) or No (on request)
• Inputs / Outputs: IO: 24 V Out + 2x AI + 2x DIO + 1x DI + 1x Ext. Enc.; IO: 24 V Out + 2x DI (on request); IO: None (on request)
• Safety Option: STO+SBC via IO (standard) or None (on request)
• Functionality Set: Full Performance Servo (standard); Full Performance Servo - Micro PLC Integrated (on request); Servo with Limited Command Input Dynamics (on request)
• Product template / example combination identifier visible on page: IM60-048-060-ECMH-M2G3-STO-01
