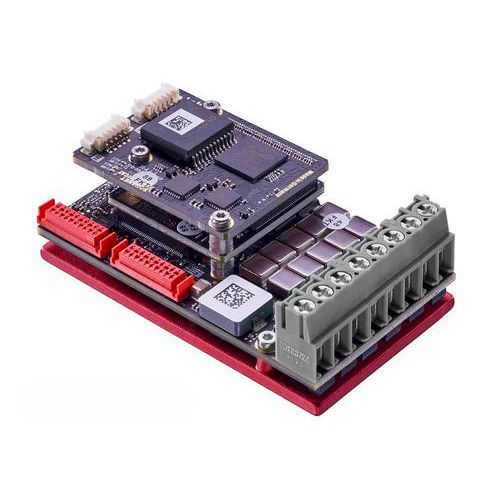

DC servo-drive SOMANET Nodesynchronousbrushlesspermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- brushless, synchronous, permanent magnet
- Output signal
- EtherCAT
- Voltage
- 48 V, 60 V
- Other characteristics
- compact, miniature, with integrated safety, with safety function, safe torque off (STO), servo-driven, for servo motors
- Intensity
Max.: 100 A
Min.: 0 A
Description
ULTRA COMPACT SERVO DRIVE
Description
SOMANET Node series is a family of ultra-compact, super-efficient servo drives for PMSM, synchronous AC and BLDC motors. They support motor voltages up to 60V and continuous currents up to 100A (66Arms) and provide an EtherCAT interface implementing the CiA DS 402 profile. All configuration and tuning is performed with OBLAC Tools, a commissioning and motion-tuning software suite. SOMANET Node Safety includes TÜV-certified STO and SBC functions at SIL3 / PLe level.
Variants & Options
Characteristics / Technical specifications
Description
SOMANET Node series is a family of ultra-compact, super-efficient servo drives for PMSM, synchronous AC and BLDC motors. They support motor voltages up to 60V and continuous currents up to 100A (66Arms) and provide an EtherCAT interface implementing the CiA DS 402 profile. All configuration and tuning is performed with OBLAC Tools, a commissioning and motion-tuning software suite. SOMANET Node Safety includes TÜV-certified STO and SBC functions at SIL3 / PLe level.
Variants & Options
- Rating: 48V 13Arms; 48V 33Arms; 48V 66Arms
- Functional Safety: None; STO, SBC via IO
- Other Options: None; 24V auxiliary enabled (available on request)
- Field Bus: EtherCAT
Characteristics / Technical specifications
- Supported motor types: PMSM, synchronous AC, BLDC
- Voltage / Current: up to 60V and up to 100A (66Arms depending on model)
- Field bus: EtherCAT with CiA DS 402 support
- Commissioning and tuning: OBLAC Tools
- Functional safety: TÜV-certified STO and SBC (SIL3 / PLe) available on variants
