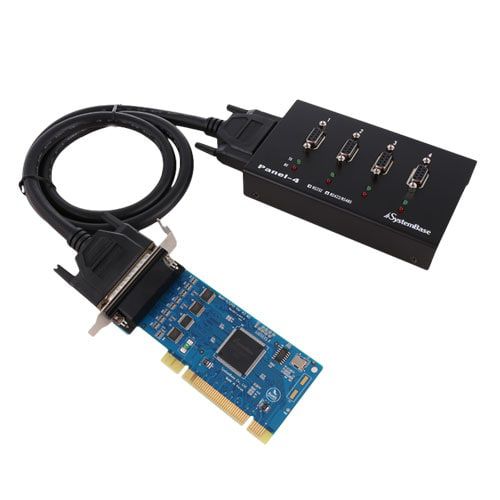

Serial communication card Multi-4/LPCI COMBO

PCI

– 4 ports serial communication card and connector panel – Supports PCI and PCI-X Bus – The world’s leading 256 byte FIFO – Communication speed: Up to 921.6kbps – ±15kV Surge protection – Slew-Rate Limit Control Multi-4/LPCI COMBO is equipped with SB16C1054PCI, powerful semiconductor designed by SystemBase. The SB16C1054PCI semiconductor is a UART designed for PCI Bus which has the 256 byte FIFO, the largest in the world. There are no overrun when communicating with 921.6kbps. It has all the necessary components for the serial communication that the developers do not require additional components to design the product. It is ideal for POS, medical use, factory automation and building automation field. Auto Toggling Multi-4/LPCI COMBO has a built-in hardware feature that performs automatic toggling to prevent devices from sending data at the same time causing a crash. This operation is crucial when multiple devices are connected to prevent electrical collisions that lead to errors and unstable communication. Slew-Rate Limit Control Multi-4/LPCI COMBO is equipped with Slew Rate limit control for RS-422/485 interface and when enabled it minimizes EMI emissions which may cause data transmission errors. When Slew Rate is used maximum communication speed is 250kbps. This function is recommended in many medical applications.
