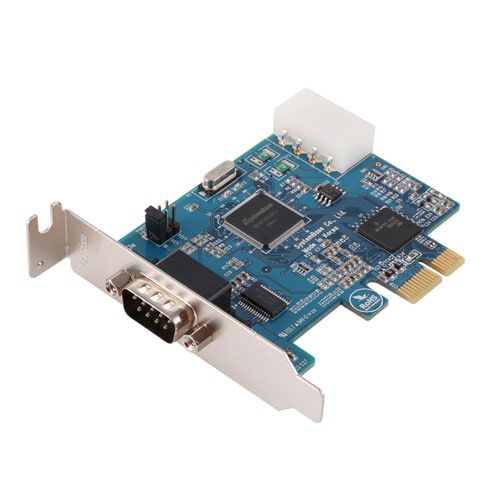

Serial communication card Multi-1/LPCIe RS232

PCI

– 1 port serial communication card – Supports PCI Express Base Specification v1.1 and v2.0 – The world’s leading 256 byte FIFO – Communication speed: Up to 921.6kbps – Supplies 5V or 12V to pin #9 – ±15kV Surge protection Overview Multi-1/LPCIe RS232 is equipped with PCIe to PCI Bridge and SB16C1052PCI, powerful semiconductor designed by SystemBase. The SB16C1052PCI semiconductor is a UART designed for PCI Bus which has the 256 byte FIFO, the largest in the world. There are no overrun when communicating with 921.6kbps. It has all the necessary components for the serial communication that the developers do not require additional components to design the product. It is ideal for POS, medical use, factory automation and building automation field. Power Supply through Pin 9 The Multi-1/LPCIe is designed to supply 5 or 12 volt power through pin 9 to power the external device. This function is ideal for connecting low power device such as barcode readers or POS printers, eliminating the need for an external power supply. 15KV Surge Protection – Built-in: Don’t risk blown ports and down time. The Multi-1/LPCIe has built-in 15,000 volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.
