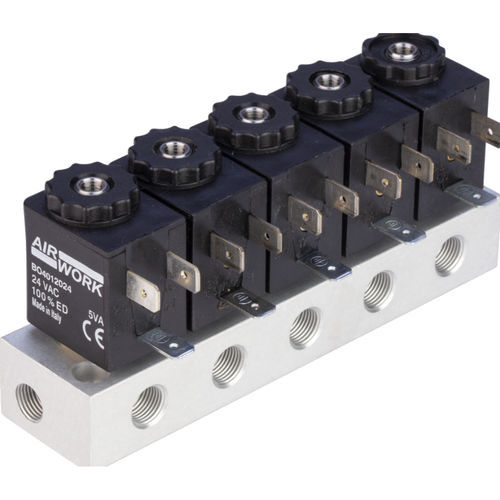

Direct-operated solenoid valve VD series3/2-waynormally closednormally open
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3/2-way
- Function
- normally closed, normally open
- Medium
- air
- Body
- compact, modular, IP67
- Process connection
- G 1/8
- Other characteristics
- standard, compact
- DN
1.5 mm
(0.059 in)- Voltage
24 V, 110 V, 220 V
- Temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)
Description
Uses standard 22mm coils common for all Airwork valves
With G1/8" connection
Sub-bases from 2 to 10 positions
Main features of the VD series battery solenoid valves are the extreme compactness of the product with the possibility to install them at any position of the machine, the high frequency and the speed of response.
They are available in different functions: 2/2, 3/2, with or without manual drive screw.
