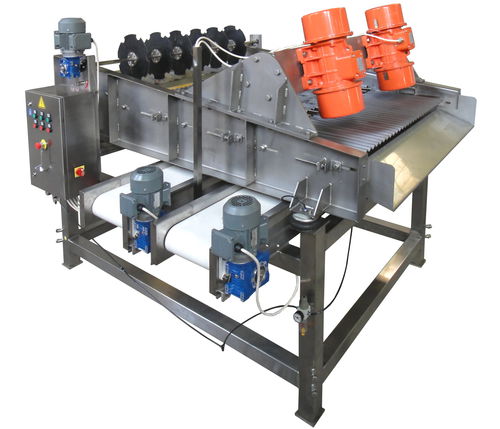

Sorting grading machine

You can get a total of 3 sizes according to lengths. (0-6cm between; 6-9cm; above 9cm). Not suitable for plump type okra. Maximum caliber efficiency of the machine is up to max.70%; this activity varies according to the variety of measures within the product and the percentage of these measures within the product. Theoretical capacity up to 1500 kg / hr (varies according to feed rate, feed width, percentage of dimensions in product) It also has a mechanism that allows adjustment to different dimensions. Electrical control panel. It is a complete unit consisting of below: Vibrating Okra length Grader -Adjustable caliber gap intervals. -AISI304 Cr.Ni. Stainless steel body. - Motor driven actuator driven rotary product spreader rubber discs in the inlet part. - Product router triangular pieces in the cold tray. - Stretching Shallow width: 130cm. * Length: 242cm. - Double vibromotors. - Rotating product spreader of rubber disks driven by motor reducer. Under Shaker Okra sizes Collecting Conveyors This conveyor set consists of a total of 2 units conveyors which collect the first two measures (0-6 cm. and 6-9 cm.) - Each conveyor length: 2m. * Band width: 30cm. -AISI304 Cr.Ni. Stainless steel body. - PVC surface belt. - each conveyor belt driven motoreducer.
