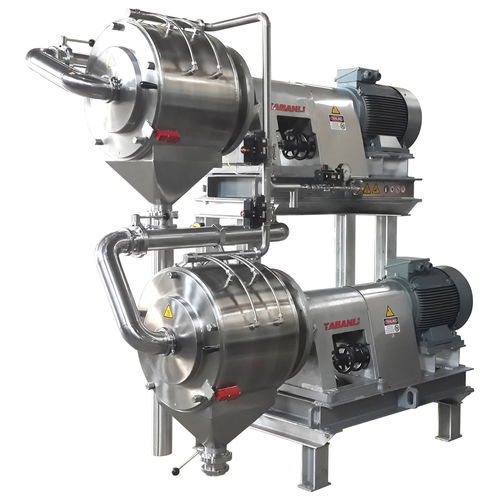

Multi-fruit juice extractor TTE

hotcold

Double staged as the first stage is Pulper (upper) and the second stage is Refiner (lower). suited to H/B or C/B processes. Conical shaped sieves are made from perforated stainless steel plate without margin and fitted into frame. Various models up to 15 and 30 and 60 tons/hr of H/B input capacity for tomato paste or up to 7,5 and 15 and 30 tons/hr of fruit input capacity for the puree. (for Upper 1st Stage`s sieve hole diameter: 1.50mm and Bottom 2nd Stage`s sieve hole diameter: 0,75mm) P.S.: These capacities will reduce for more little hole diameter and C/B process. Food contact points, sieve, rotor and food pipes are made of stainless steel AISI 304 and special alloyed. The rotor shaft and the rotor blades are made of mechanical capability of high stainless steel. Bearing bushings, Frame, bottom plate are made of mild steel, painted. Special design rotor with removable blades can turn both side for longer blade life. Product entries will be from the front cover, pulp output will be by the bearing housing so that the sieve screen can be removed easily and without rotors removed. Mechanism for adjusting the distance between the rotating rotor blades with conical sieve. Steam injected hot water spray cleaning system from the external sieves. There will be safety switches on the lids. Electrical control panel is included. (But, wiring and cables between machine and panel are excluded) Optional pipe and valve arrangement can be addapted upon request to use as Serial or Parallel of the both stage.
