Arbitrary waveform generator P1282D

dual-channel

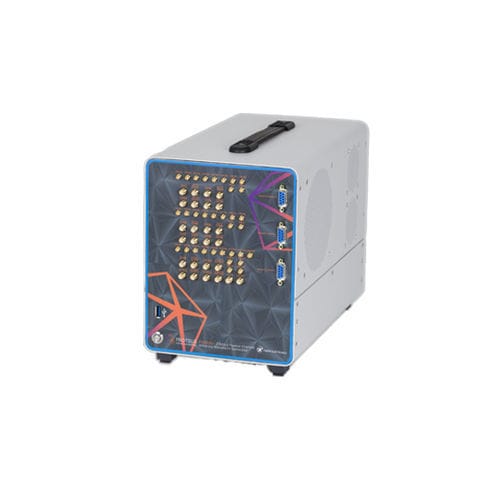

The Proteus P1282D, is a 1.25GS/s, dual channel arbitrary waveform generator packaged in a 4U, half 19” dedicated chassis, offering technologically advanced options and configurations that integrate the ability to transmit and perform digital signal processing all in a single instrument. The P1282D offers industry leading performance Including an innovative task oriented programming, real time data streaming, fast feedback loop for environment dependent waveform generation and user customizable FPGA for application specific solutions. Dual channel 1.25GS/s 16 bit, AWG configurations 8GHz bandwidth, 2.7GS/s 12 bit digitizer option for feedback control system and conditional waveform generation Excellent phase noise and spurious performance Integrated NCO for digital up-converting to microwave frequencies Space efficient desktop platform, with USB 3.0, 10G Ethernet and thunderbolt high speed interfaces. Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms Real time data streaming directly to the FPGA for continuous and infinite waveform generation User customizable FPGA for application specific solutions Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
