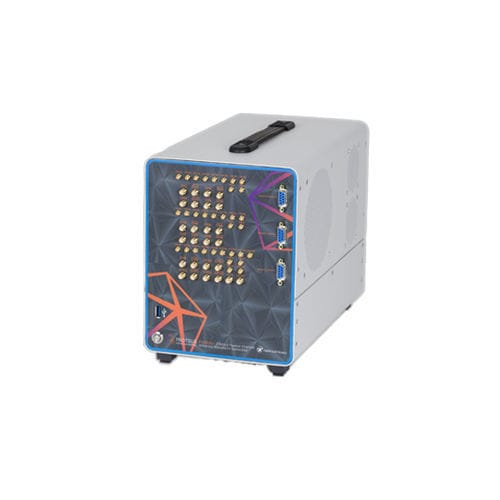

Arbitrary waveform generator P25812D

USBcompact12-channel

The Proteus P25812D, is a 2.5GS/s, twelve channel arbitrary waveform generator packaged in a 4U, half 19” dedicated chassis, offering technologically advanced options and configurations that integrate the ability to transmit, receive and perform digital signal processing all in a single instrument. The P25812D offers industry leading performance Including an innovative task oriented programming, real time data streaming, fast feedback loop for environment dependent waveform generation and user customizable FPGA for application specific solutions. 8GHz bandwidth, 2.7GS/s 12 bit digitizer option for feedback control system and conditional waveform generation Excellent phase noise and spurious performance Features Built on the industry-standard PXI Express architecture, the Proteus Arbitrary Waveform Transceiver offers a modular design that scales easily to hundreds of channels while minimizing footprint. Its high-density form factor packs four generator outputs and two digitizer inputs into just three PXI slots. This makes Proteus a space-efficient and cost-effective solution for synchronized, phase-coherent applications such as EW simulation, large-scale qubit control, and massive MIMO research. Ultra-fast data transfer The Proteus architecture is optimized for maximum data throughput, leveraging a state-of-the-art PCIe backplane. Key capabilities include bidirectional waveform memory transfer, real-time signal generation using pulse descriptor words (PDWs), and uninterrupted streaming for playback and recording applications.
